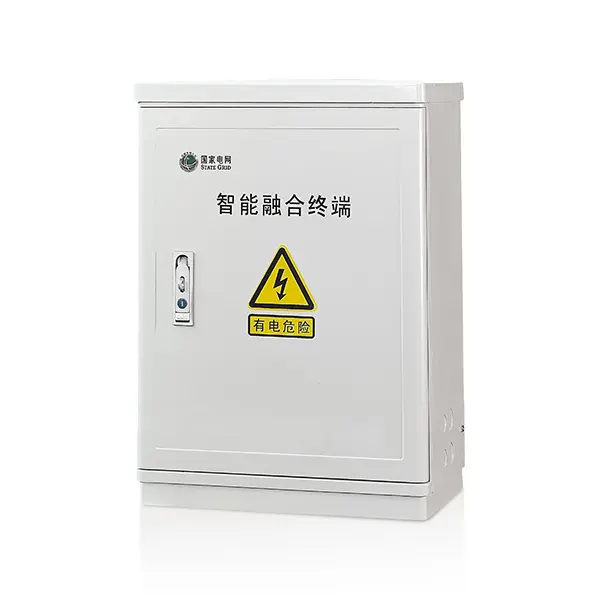

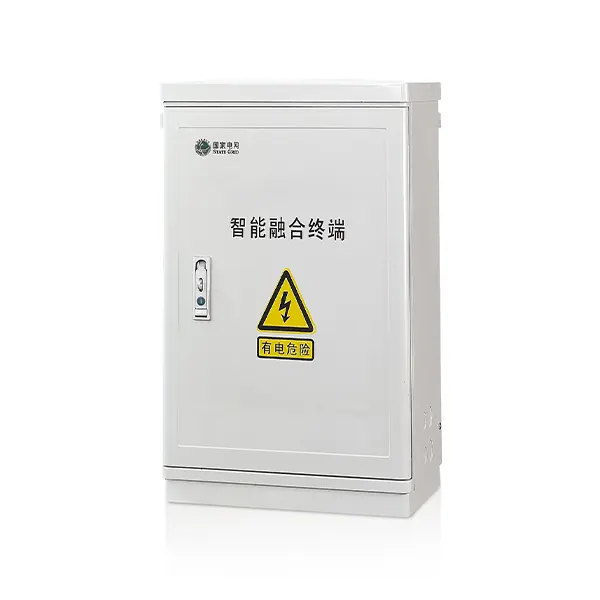

Wholesale TY-TTU Intelligent Fusion Terminal Box Manufacturer, Manufacturers
Product Description
Product Overview
The TY series FRP electric energy metering boxes developed by Teyi Electric Co., Ltd. are made of SMC unsaturated polyester resin glass fiber reinforced plastics through compression molding. They have the characteristics of reliable insulation, high strength, good flame retardancy, corrosion resistance, aging resistance, novel shape, smooth and beautiful surface, etc. The service life is more than 40 years indoors and more than 30 years outdoors, which is incomparable to other metal plastic electric meter boxes. This product is widely used in residential construction and civil power transformation. It can be combined with multiple households at will, and can also be installed in a single household or across households. It is easy to construct and has concealed wiring. This product adopts a strict rainproof design and is suitable for outdoor installation to ensure the safe operation of the electric meter.
Product Use Scope and Conditions of Use
TY series electric energy metering box includes two parts: single-phase meter box and three-phase meter box. It is suitable for AC 50Hz or 60Hz, rated working voltage up to 220V, 380V, 690V, rated working current of 10A-250A power supply system, for single-phase electric energy and power energy measurement and control management.
Product Installation and Use Guidelines
- Please carefully check the integrity of all parts of the meter box during installation.
- The meter box should be installed vertically and the tilt angle should not exceed 54°.
- The installation location should be selected where there is no severe vibration, impact, or corrosion to electrical components.
- The material used in the meter box is not resistant to strong alkali, oxidizing acid, amine, ketone, and soluble in chlorinated hydrocarbons and aromatic solvents. Therefore, it should be avoided from contact or use with these chemicals. During use, sharp objects and hard objects should be avoided from colliding and scratching the surface of the meter box.
- When installing the meter box, try to choose a cool and dry place to avoid long-term direct sunlight to extend the service life of the meter.
- The fixing positions of the meter box for fixing on the wall or crossarm are all located inward, so the box must be opened before installation. First, remove the two upper cover fixing screws located in the middle of the lower part of the meter box, and then open the box according to the instructions here.
- According to the location of the installation holes, drill the installation holes at the corresponding positions of the wall, install the expansion tube, then fix the base to the wall and install the upper cover.
Main Technical Parameters of the Product

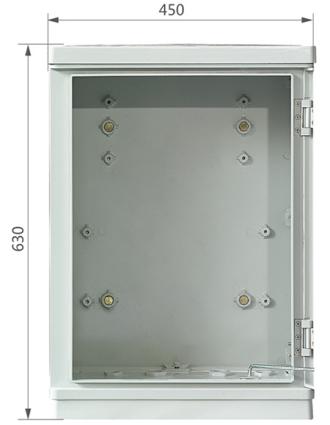

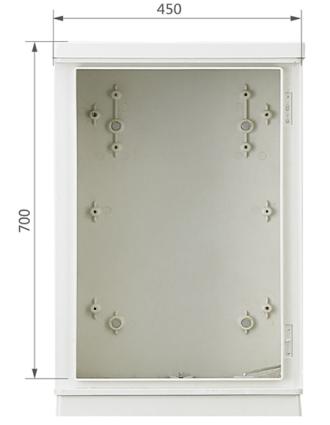

Appearance and Installation Dimensions
Frequently Asked Questions (FAQ)
What material is the TY series electric energy metering box made of?
The TY series metering boxes are manufactured from SMC (Sheet Molding Compound) unsaturated polyester resin glass fiber reinforced plastics through precision compression molding, offering high mechanical strength and reliable electrical insulation.
What is the expected service life of the FRP meter box?
Due to its anti-aging and anti-corrosive material composition, the TY series FRP meter box has an expected operating lifespan of over 40 years for indoor applications and more than 30 years in outdoor environments.
Can this metering box be safely installed outdoors?
Yes. The meter box features an IP44 security protection rating and a strict rainproof structural design, making it fully suitable for outdoor civil power transformation and residential applications.
What are the installation angle requirements for the enclosure?
The meter box must be mounted vertically on walls or crossarms, and the operating tilt angle must not exceed 54° to ensure proper rain protection and component function.
Which environmental chemicals should be avoided around the meter box?
The SMC material is sensitive to strong alkalis, oxidizing acids, amines, and ketones, and can dissolve in chlorinated hydrocarbons and aromatic solvents. Exposure to these specific chemicals must be avoided.
