Featured Core Distribution & Metering Systems
Utility-approved electrical distribution boxes, medium-voltage switchgear, and outdoor weatherproof substations manufactured under ISO9001/14001 certified protocols at our Yueqing manufacturing cluster.
The Yueqing Electrical Cluster: Integrated Supply Chain Superiority
Situated at the heart of China's low- and medium-voltage electrical manufacturing epicenter, Zhejiang Teyi Electric harnesses massive upstream-downstream consolidation, high-tonnage hydraulic compression presses, and vertical tooling integration.
In-House Tooling & Hot Molding
We operate precision 500T to 2000T automated hydraulic compression molding units. In-house mold fabrication reduces tooling modification cycles from months to days, guaranteeing wall thickness uniformity and zero shrinkage in SMC enclosures.
Bulk Raw Material Procurement
Direct supply agreements with Tier-1 glass fiber roving, unsaturated polyester resin, and metallurgical stainless steel suppliers shield our clients from global commodity volatility, yielding an average 18-24% cost advantage over fragmented regional fabricators.
Full-Chain Modular Assembly
From automated laser cutting and CNC bending for 304/316 stainless steel enclosures to high-voltage partial discharge testing laboratories, every assembly phase is audited under a strict zero-defect quality gate system.
Shortened Turnaround Times
Leveraging local ecosystem clustering in Yueqing, auxiliary components like terminals, copper busbars, and micro-breakers are sourced within a 15 km radius, cutting standard OEM project delivery schedules by up to 40%.
Meeting Global Utility Standards & Procurement Requirements
International Engineering, Procurement, and Construction (EPC) consortiums and state-owned power authorities face severe challenges regarding premature field degradations, electric theft, dielectric breakdown, and non-compliant insulation. Teyi Electric engineers full-scope compliance directly into every enclosure archetype.
Anti-Tamper & Revenue Protection
Unaccounted energy losses (non-technical losses) cost utilities billions annually. Our metering cabinets incorporate three-tier mechanical anti-tamper designs: hidden inner hinges, pad-lockable lead-seal mechanisms, and smart micro-switch intrusion sensors compatible with utility SCADA/AMI architectures.
IEC / EN / UL Normative Alignment
Products conform rigorously to IEC 61439-1/2 (Low-voltage switchgear and controlgear assemblies), IEC 60529 (Degrees of protection provided by enclosures), IEC 62271-200 (A.C. metal-enclosed switchgear for rated voltages above 1 kV and up to 52 kV), and UL 94 V-0 flammability resistance ratings.
Climatic Extremes & Dielectric Safety
Operating environments in the Middle East, Southeast Asia, and Latin America subject enclosures to intense UV radiation, 95% relative humidity, salt mist, and ambient temperatures up to 55°C. SMC composite enclosures offer non-conductive touch safety, preventing accidental electrocution without external grounding lines.
Comprehensive Material Reliability: Unlike ordinary polycarbonates (PC) or ABS plastic housings that embrittle, discolor, and warp under solar irradiance, Sheet Molding Compound (SMC) is an irreversible thermosetting polymer matrix reinforced with randomly oriented high-tensile continuous glass filaments. It withstands glow-wire tests up to 960°C and maintains dimensional stability from -40°C to +140°C.
| Evaluation Parameter | Teyi SMC Fiberglass (GRP) | Stainless Steel (304 / 316) | Standard Thermoplastic (PC/ABS) |
|---|---|---|---|
| Galvanic & Saline Corrosion | Total Immunity Zero oxidation | High resistance (Requires passivation) | Moderate; surface hazing occurs |
| Dielectric Strength | > 15 kV/mm (Inherently insulated) | 0 (Conductive; Mandatory earthing) | 12-14 kV/mm |
| Mechanical Impact Rating | IK10 (Up to 20 Joules direct strike) | IK10+ (Heavy impact resilience) | IK07 - IK08 (Prone to low-temp crack) |
| Flame Retardancy | UL 94 V-0 Self-extinguishing; Glow-wire 960°C | Non-combustible A1 class | UL 94 V-1 or V-2 (Drips during burn) |
| Expected Service Longevity | Outdoor 30+ Yrs / Indoor 40+ Yrs | 25-30 Yrs (Depending on ambient acids) | 8-12 Yrs (Degrades under solar UV) |
Industry Trends: The Modernization of Distribution Architecture
Distribution transformers, smart meters, and outdoor branch cabinets are transitioning from passive enclosures to intelligent, sensor-equipped IoT nodes on the electrical edge.
AMI & AMR Wireless Interoperability
Modern utilities demand real-time automated meter reading. Our SMC composite cabinets feature zero RF shielding, allowing LoRaWAN, NB-IoT, 4G LTE, and Zigbee wireless signals to transmit unimpeded without requiring unsightly external aerials.
Renewable Distributed Generation
The exponential rise of rooftop photovoltaic generation and microgrids requires bidirectional metering enclosures equipped with anti-islanding breaker modules, DC string inputs, and surge protective devices (SPD) up to Type 1+2.

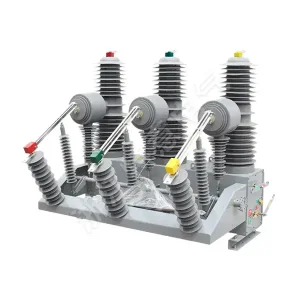

Primary & Secondary Fusion Switchgear
The integration of pole-mounted circuit breakers with internal electronic voltage/current sensors, micro-processing remote terminal units (RTUs), and self-healing feeder automation algorithms radically lowers outage response time from hours to seconds.
SF6 Eco-Friendly Alternatives
In response to international greenhouse gas curtailment accords, Teyi Electric is actively engineering dry-air and solid-insulated medium-voltage Ring Main Units that replace sulfur hexafluoride (SF6) gas while preserving compact physical footprints.
Localized Application Scenarios: Field-Tested Across Extreme Terrains
From corrosive marine salt mist to high-altitude thermal fluctuations, Teyi Electric enclosures and switchgear operate reliably across the world's most demanding electrical infrastructures.
Utility-Scale & C&I Solar Farms
PV generation fields experience high UV radiation, elevated internal ambient temperatures, and desert or dust storms. Our UV-stabilized SMC photovoltaic grid-connection boxes house DC disconnectors, surge suppression, and bidirectional revenue meters with thermal dissipation labyrinths that eliminate internal condensation.
Petrochemical & Coastal Terminals

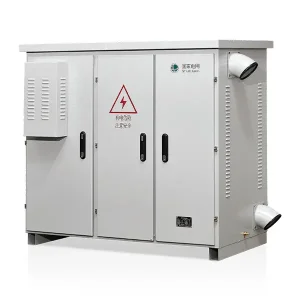

Refineries, chemical processing plants, and port facilities expose electrical hardware to airborne sulfur dioxide, chlorine ions, and acidic vapor. Teyi 316-grade stainless steel JP cabinets and hermetically compressed SMC meter boxes deliver total corrosion resistance without surface maintenance.
High-Rise Residential Sub-Metering
Dense multi-family apartment towers require compact multi-position metering enclosures with discrete tenant compartments, isolated main busbar runs, and integrated miniature circuit breaker (MCB) sub-panels. Our TY-SXD2 multi-meter series offers streamlined cabling paths that cut on-site contractor installation time by 35%.
Urban Rail & Underground Distribution
Metropolitan underground rail grids require compact, gas-insulated or solid-insulated Ring Main Units (RMU) to sectionalize medium-voltage feeder loops. Teyi RMU switchgear withstands dust, moisture, and cyclic vibration while delivering zero-arcing isolation during scheduled maintenance.
Worldwide Engineering Support & Compliance Assurance
Procuring from Zhejiang Teyi Electric means partnering with an experienced OEM/ODM manufacturing facility that understands utility tender paperwork, pre-qualification requirements, third-party laboratory verification, and localized engineering adaptations.
Tender Qualification & Custom Drawings
Our senior electrical engineers generate 2D CAD layouts, 3D STEP models, single-line diagrams (SLD), and comprehensive compliance documentation within 48 to 72 hours of project submission, assisting international contractors in meeting strict bidding timelines.
Rigorous Pre-Shipment Inspection (PSI)
We provide full routine testing reports (Factory Acceptance Testing - FAT), dielectric insulation withstand tests, IP water ingress tests, and mechanical torque validation for every production batch. We routinely collaborate with third-party inspectors like SGS, TÜV Rheinland, Bureau Veritas, and Intertek.
Customized Packaging & Marine Logistics
Exporting to over 60 countries requires robust logistical protection. All metering boxes, JP cabinets, and RMUs are packaged using heavy-duty honeycomb corrugated cartons, vacuum moisture-barrier bags, and fumigated solid wood crates compliant with ISPM 15 standards to prevent transit degradation.
Frequently Asked Technical & Procurement Questions
Engineering insights and direct answers addressing the primary technical, operational, and commercial questions raised by utility procurement officers and electrical contractors.

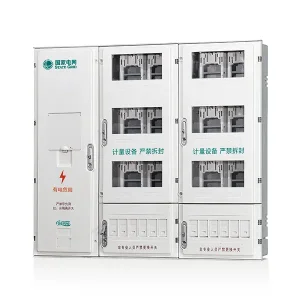

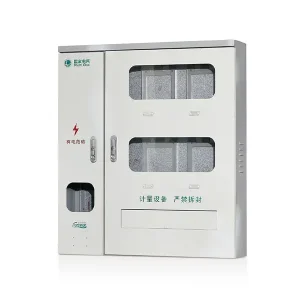

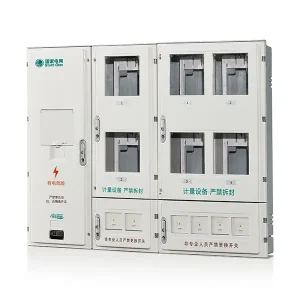

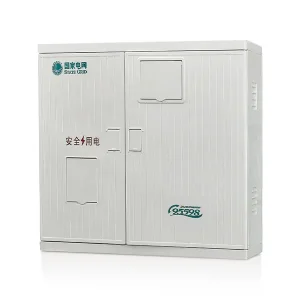

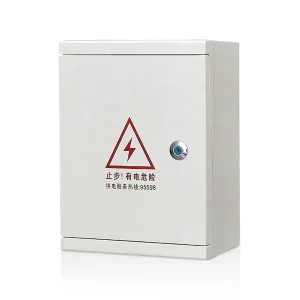

Precision Junction, Metering & Distribution Enclosures
Review additional hot-selling single-phase and three-phase meter boxes, flame-retardant junction boxes, and low-voltage transformer connection cabinets designed for industrial and residential utility services.
Accelerate Your Electrical Grid Procurement Workflow
Whether your enterprise is preparing tender submittals for national grid modernizations, upgrading residential sub-metering banks, or sourcing weather-resilient switchgear for renewable power stations, Zhejiang Teyi Electric provides factory-direct technical excellence.
