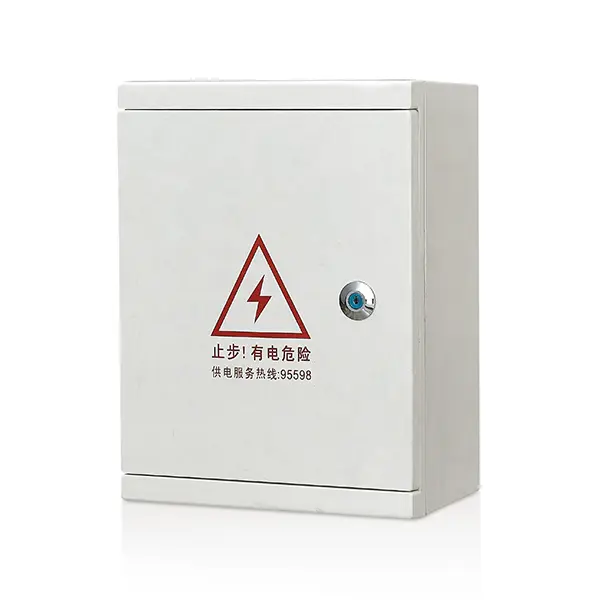

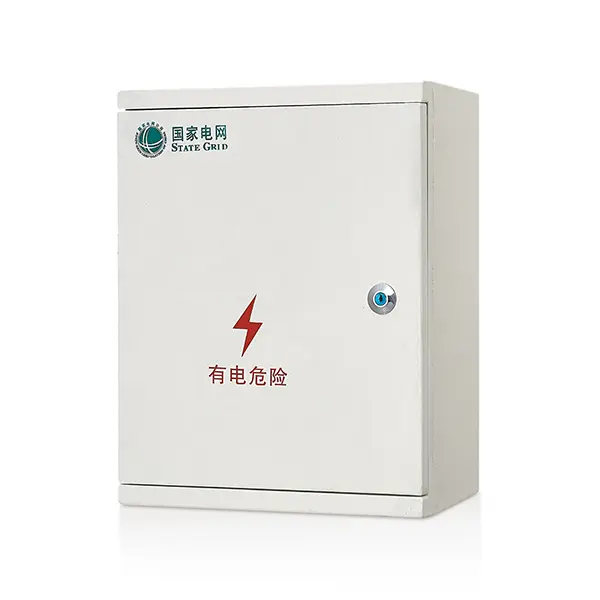

Wholesale TY-KZX Wall-mounted control box Manufacturers, Factories
Product Description
1. Power Distribution Center
Centrally manage multi-circuit power distribution and distribute power to terminal devices (such as lighting, motors, etc.) through built-in circuit breakers, disconnectors and other components to achieve refined control of loads.
2. Electrical Safety Protection
The glass fiber reinforced plastic box (SMC material) provides high insulation (insulation resistance ≥ 20MΩ) and flame retardancy (UL94 V0 level), effectively isolating arc risks; Integrated leakage protector (RCL fuse) and overcurrent protection device can quickly cut off the fault circuit to prevent electric shock and electrical fire.
3. Environmental Adaptability Design
IP44 and above protection levels (rainproof design) resist outdoor rain and dust intrusion, and -25℃~+50℃ wide temperature range operation ensures stability in extreme climates; It has the characteristics of anti-ultraviolet aging and chemical corrosion resistance (resistant to weak acid and alkali), and is suitable for industrial waste gas and coastal high salt fog environment.
4. Optimize Operation and Maintenance Convenience
Transparent window or openable panel design supports real-time monitoring of operating status (such as instrument readings, switch positions) without opening the box; Modular component layout facilitates quick replacement of circuit breakers, electric meters and other components, reducing maintenance time and costs.

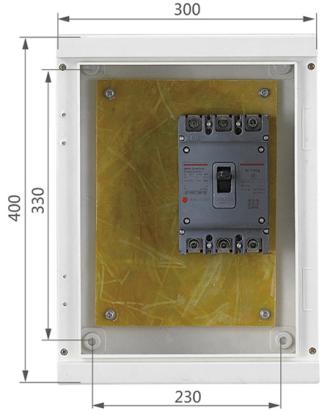

TY-KZX-3A Dimensions

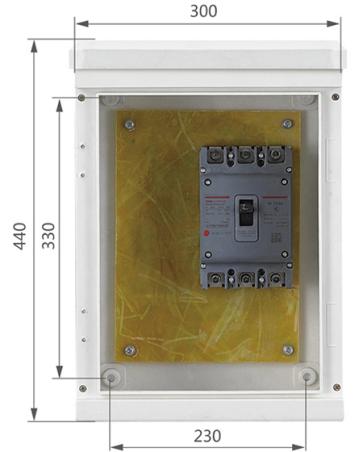

TY-KZX-3B Dimensions

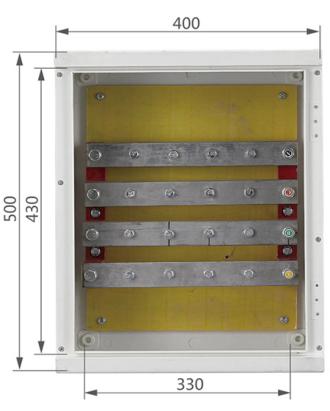

TY-KZX-4A Dimensions

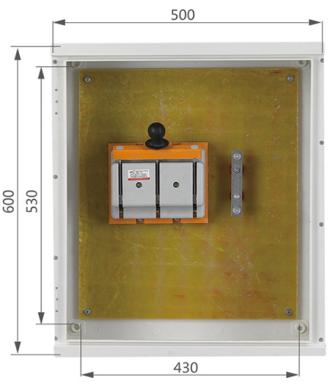

TY-KZX-5A Dimensions

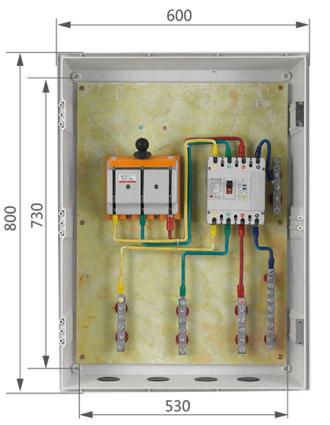

TY-KZX-6A Dimensions
Q: What enclosure material is used for this series of distribution boxes?
The distribution box enclosure is constructed from glass fiber reinforced plastic (SMC material), providing high insulation resistance (≥ 20MΩ), UL94 V0 flame retardancy, and effective protection against electrical arcing.
Q: What is the ingress protection and operating temperature range?
The enclosure provides IP44 and above ingress protection to shield internal electrical components against outdoor rain and dust. It maintains stable operation across an ambient operating temperature range of -25℃ to +50℃.
Q: Can the equipment operate in corrosive or coastal environments?
Yes, the SMC material provides anti-ultraviolet aging and chemical corrosion resistance against weak acids and alkalis, making it ideal for outdoor industrial waste gas areas and coastal high-salt fog conditions.
Q: What electrical safety and fault protection devices are integrated?
The unit integrates an overcurrent protection device and an RCL leakage protector fuse to promptly disconnect faulty circuits, minimizing risks of electrical fires and electric shocks.

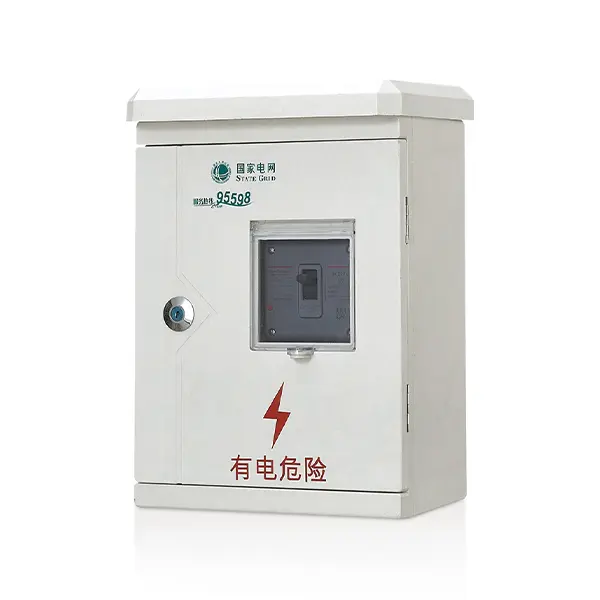

Q: Is it possible to inspect device status without opening the door?
Yes, the units are equipped with a transparent inspection window or openable observation panel, enabling operators to inspect switch positions and instrument readings in real time without opening the box.
Q: How does the modular design assist with maintenance?
The modular component layout permits fast and straightforward replacement of electrical components such as circuit breakers and meters, significantly reducing maintenance labor, system downtime, and servicing costs.
