Product Description
Product Overview
The TY series FRP electric energy metering boxes developed by Teyi Electric Co., Ltd. are manufactured using innovative SMC resin composite material molding technology, combined with glass fiber reinforcement technology to ensure that the product has excellent industrial performance. Its core advantages include:
High-strength material
SMC fiberglass structure provides high mechanical strength and insulation reliability, passed UL94 V-0 flame retardant certification, and effectively resists corrosion, aging and ultraviolet rays.
Long-term durability
Indoor service life ≥ 40 years, outdoor service life ≥ 30 years, significantly better than traditional metal or plastic meter boxes.
Flexible application
Widely used in residential power grids and civil substations, and supports modular free combination installation of single-family, cross-family or multi-family (such as 1-6 meter position configuration) to meet diverse needs.
Convenient construction
The concealed wiring channel design simplifies the installation process and is suitable for wall hanging or cross arm fixing, reducing construction complexity.
Application Notes
- Voltage level:220V/380V/690V (single/three-phase)
- Current range:10-250A
- Grid frequency:50/60Hz
- Function:Electricity metering and distribution management
- Temperature range:-25℃~+50℃ (daily average ≤35℃)
- Humidity requirement:RH≤80% at 40℃ (can be relaxed at low temperature)
- Installation requirements:Clean air environment
Function and Application Place
- 1. Power Collection and Distribution:Power is centrally collected and distributed to multiple loads.
- 2. Protection function:Provide overload and short circuit protection to ensure equipment safety.
- 3. Fault monitoring:Real-time monitoring of current and voltage to detect faults in time.
- 1. Industrial production:Factories, mines, etc.
- 2. Construction sites:Temporary power distribution.
- 3. Power system:Substation, distribution room.
- 4. Commercial facilities:Shopping malls, supermarkets, etc.
- 5. Water treatment plants:Power management and distribution.

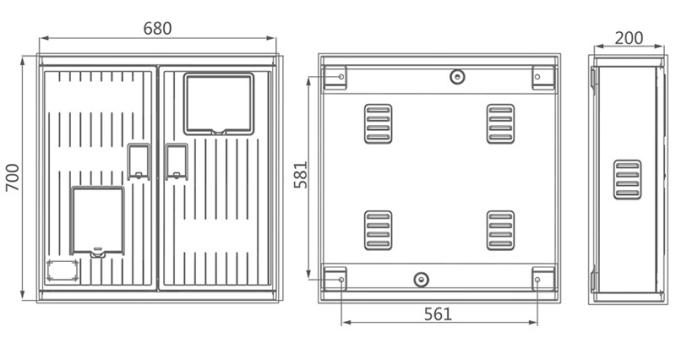

TY-SXS1-AXJ Model, Configuration and Installation Dimensions
| TY | SX | S1 | A | XJ |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Three-phase single meter box | Low pressure type A | Xinjiang |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Disconnector | HD11F-200/48 200A 19CM | 1 |
| Outlet switch | Molded case leakage circuit breaker | CDMKL-125C/4300 125A 1/3/5 | 1 |
| Electric meter bracket | Three-phase gap connector | 100A | 1 |

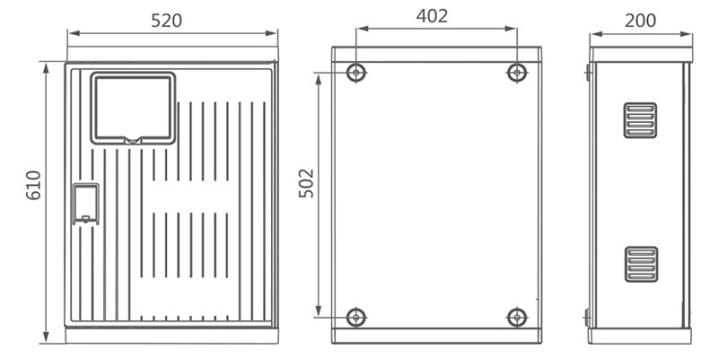

TY-SXS1-AGXJ Model, Configuration and Installation Dimensions
| TY | SX | S1 | AG | XJ |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Three-phase single meter box | High pressure type A | Xinjiang |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Electric meter bracket | Metal meter stand | Type 270 | 2 |
Frequently Asked Questions (FAQ)
The TY series metering boxes are manufactured using innovative SMC resin composite material molding technology combined with glass fiber reinforcement to ensure high mechanical strength, insulation, and UL94 V-0 flame retardancy.
The indoor service life is ≥ 40 years, and the outdoor service life is ≥ 30 years, offering far greater durability and UV/corrosion resistance than traditional metal or plastic boxes.
The unit supports voltage levels of 220V, 380V, and 690V (single or three-phase), current ratings between 10A and 250A, and a grid operating frequency of 50/60Hz.
It is designed for environments with clean air, a working temperature range of -25℃ to +50℃ (with daily average ≤35℃), and relative humidity RH ≤ 80% at 40℃ (relaxable under lower temperatures).
The system provides centralized power distribution, overload and short circuit protection, and real-time current and voltage monitoring to ensure prompt fault detection and equipment safety.
It features a concealed wiring channel design that supports wall hanging or cross-arm fixing, and allows modular free combination installations for single-family, cross-family, or multi-family setups (1-6 meter positions).
