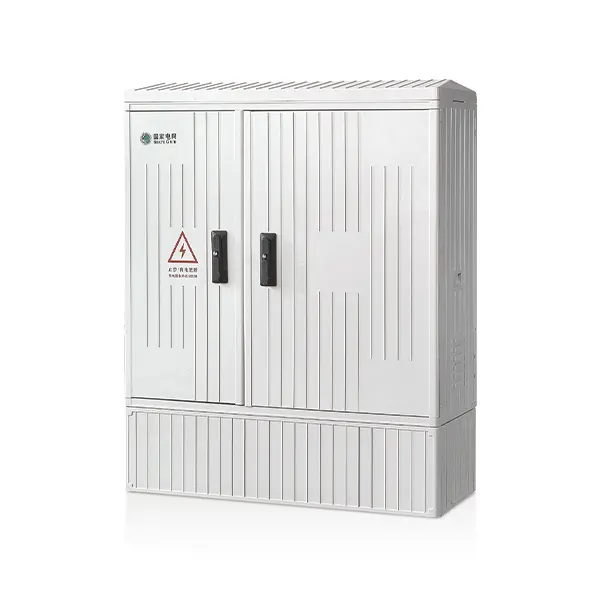

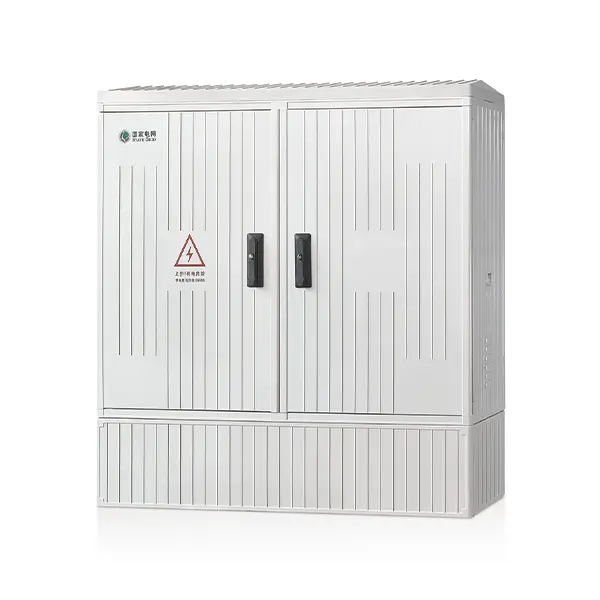

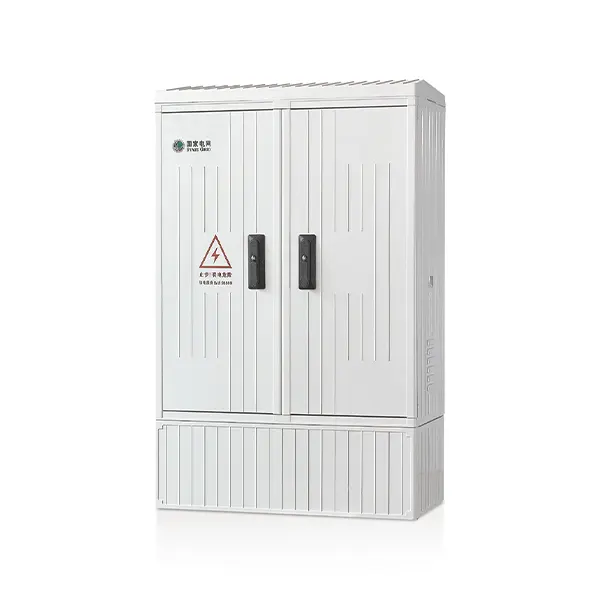

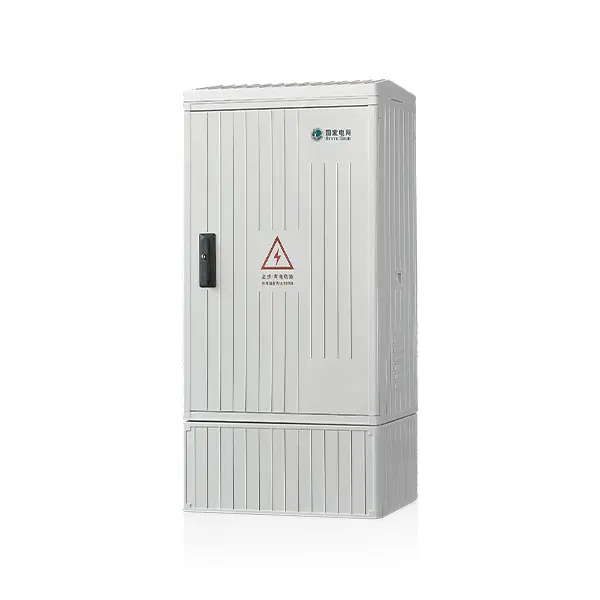

Wholesale TY-DFW Floor-standing Cable Branch Box Supplier, Factories
Product Description
Application Scenarios
1. Urban Public Power Grid
Commercial and densely populated areas
- Urban commercial centers, high-rise buildings, and large shopping malls
- Residential communities and public facilities areas (such as schools and hospitals)
Municipal power grid upgrades
- Urban power grid transformation project, replacing traditional overhead lines and realizing cable distribution network
- Electricity distribution nodes along streets/highways
2. Industry & Special Scenarios
Heavy industrial base
- Mining areas, steel smelting, automobile manufacturing, petrochemical, and cement production, and other large-scale enterprise factories
Adaptability to harsh environments
- Fully sealed structure design supports underground deployment and withstands flooding (protection level IP33~IP66)
- Anti-corrosion materials can cope with highly corrosive environments such as chemical industry and coastal areas
3. Green Energy & Smart Grid
New energy supporting nodes
- Applicable to the power collection and distribution of clean energy projects such as photovoltaic power stations and wind power bases
Smart city infrastructure
- Integrate into smart grid system to support digital power management (matching metering technology upgrade is required)
Summary of the Advantages of Scene Adaptability
- Fully insulated and sealed to ensure electricity safety in commercial and residential areas
- Flood and corrosion resistance, suitable for industrial areas and complex underground environments
- Modular and flexible deployment significantly reduces the cost of urban power grid transformation
Innovative Structural Design
Modular Assembly System
- High-precision compression molding technology is used to achieve ±0.5mm dimensional tolerance control.
- The building block quick-install structure increases installation efficiency by more than 60%.
Triple Protection System
- Electrical protection: Fully insulated housing design (dielectric strength ≥ 3kV/mm), eliminating the need for a grounding system.
- Environmental protection: The composite material has passed the GB/T2423 salt spray test (1000h) and UV aging test (3000h).
- Physical protection: Labyrinth seal structure verified by IP54 protection level.
Appearance, Build List & Installation Dimensions
Box Build List, Shape and Dimensions

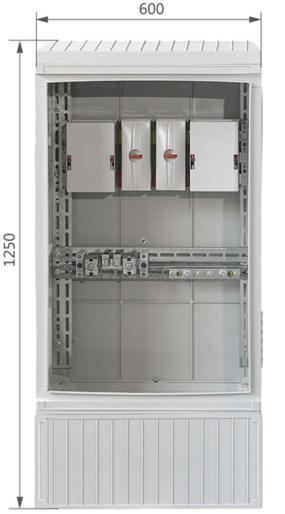

TY-DFW-6F Appearance and Installation Dimensions

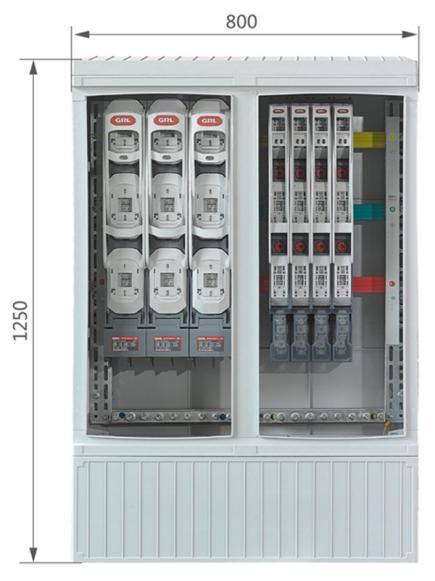

TY-DFW-8F Appearance and Installation Dimensions

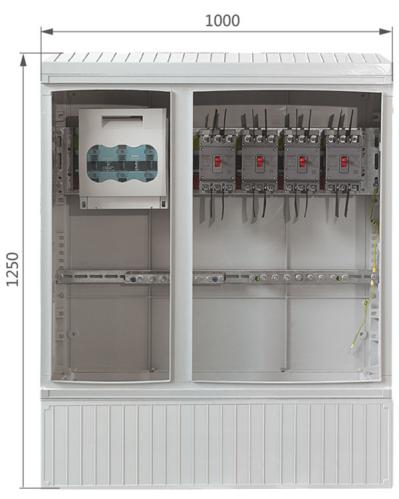

TY-DFW-10F Appearance and Installation Dimensions

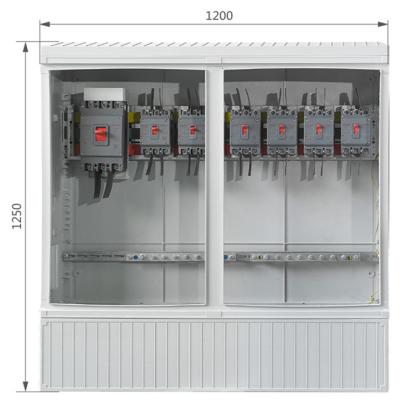

TY-DFW-12F Appearance and Installation Dimensions
Frequently Asked Questions
What environments are best suited for this distribution equipment?
The equipment is engineered for diverse environments including urban commercial centers, residential neighborhoods, heavy industrial facilities (mining, smelting, petrochemicals), and renewable energy plants (photovoltaic and wind power). Its anti-corrosion properties and ingress protection also make it ideal for coastal regions and underground installations.
How does the modular assembly design improve on-site installation?
By utilizing high-precision compression molding with ±0.5mm dimensional tolerance and a building block quick-install architecture, the system reduces assembly complexity and boosts on-site installation efficiency by more than 60%.
What protective certifications and ratings does the housing provide?
The housing provides physical protection rated between IP33 and IP66 (with IP54 verified labyrinth seals). It has passed the GB/T2423 salt spray test for 1,000 hours and UV aging resistance for 3,000 hours, ensuring exceptional durability against corrosion, flooding, and harsh outdoor exposure.
Is an additional grounding system required for installation?
No. The unit features a fully insulated housing design with a dielectric strength ≥ 3kV/mm, completely eliminating the need for a traditional external grounding system and significantly improving electrical safety.
Which model configurations are offered in this series?
The series provides multiple standardized specifications to accommodate different circuit capacities, including the TY-DFW-6F, TY-DFW-8F, TY-DFW-10F, and TY-DFW-12F models, each accompanied by detailed appearance and installation dimension profiles.
