Product Description
Product Highlights
Adopt SMC glass fiber reinforced plastic compression molding technology.
Excellent performance: Reliable insulation, high strength, flame retardant (in line with GB standards).
Strong durability: 40 years indoors / 30 years outdoors.
Environmental adaptability: Corrosion-resistant, anti-aging, rain-proof design.
Appearance design: Novel shape, smooth surface.
Flexible installation: Supports single-family / multi-family / cross-family combinations.
Convenient construction: Concealed wiring design.
Applicable scenarios: Residential areas, civil substations, etc.
Product Overview
Product Composition
Specifications: Single-phase / three-phase specifications
Applicable Voltage: 220V / 380V / 690V
Current Range: 10-250A
Frequency: 50/60Hz AC compatibility
Core Functions
Integrated solution for energy metering and electricity management.
Environmental Adaptability
Temperature Range: -25℃ ~ +50℃ (daily average ≤35℃)
Humidity Requirement: ≤80%RH at 40℃ (can be relaxed at low temperature)
Main Technical Parameters
Installation Specification Requirements
Model, Configuration & Installation Dimensions

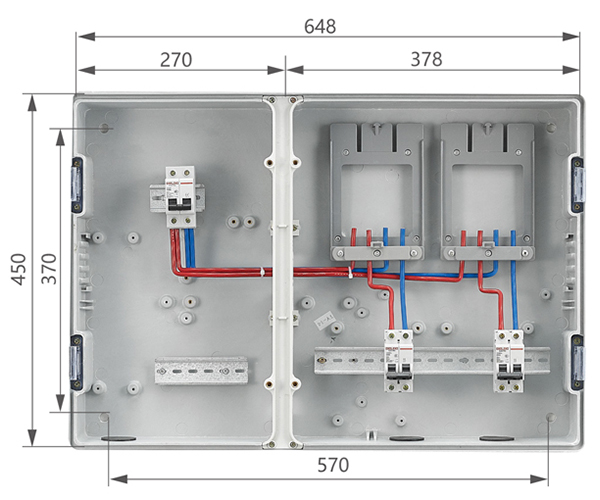

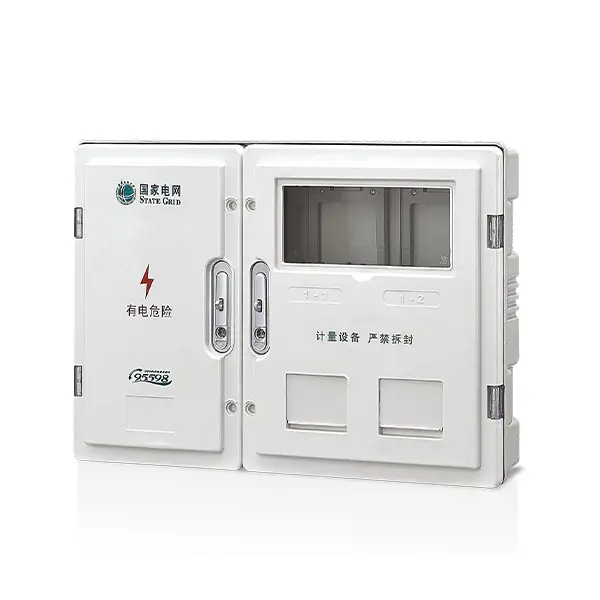

| TY | SX | D2 | 2 | A |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Single-phase multi-meter metering box | Table number | First Generation |
| Configuration | Name | Component Model | Qty |
|---|---|---|---|
| Incoming switch | Disconnector | CDGK 2P 100A | 2 |
| Outlet switch | Miniature circuit breakers | CDBKs C type 2P 63A dedicated to power grid | 2 |

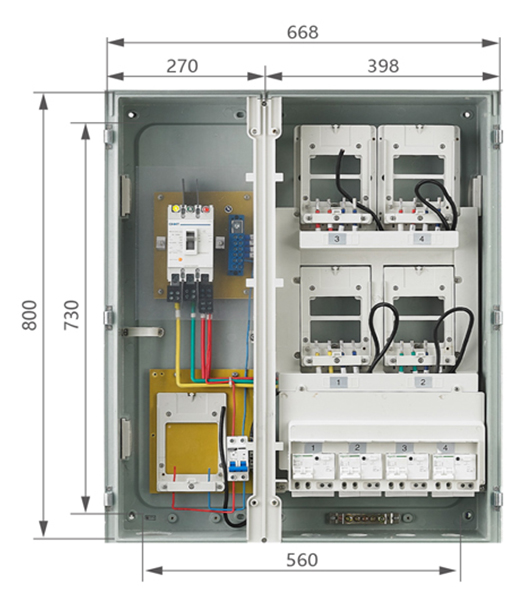

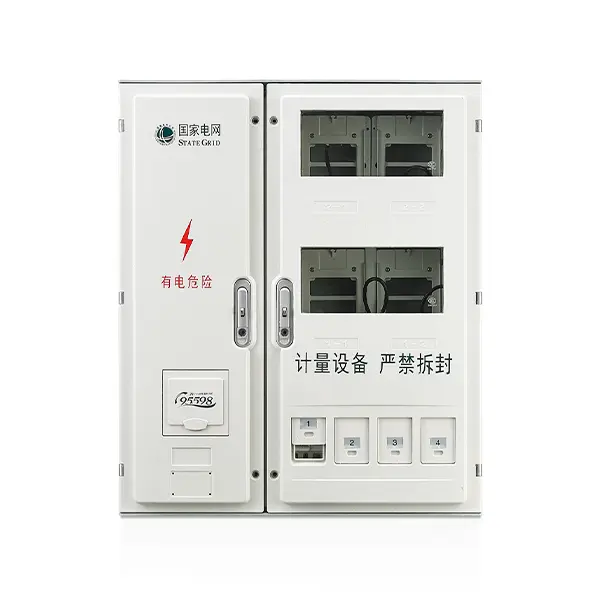

| TY | SX | D2 | 4 | A |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Single-phase multi-meter metering box | Table number | First Generation |
| Configuration | Name | Component Model | Qty |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | CDMK-125C/3300 125A | 1 |
| Outlet switch | Miniature circuit breakers | CDBKs C type 2P 63A dedicated to power grid | 4 |
| Power supply | breaker | CDBK C type 2P 6A | 1 |

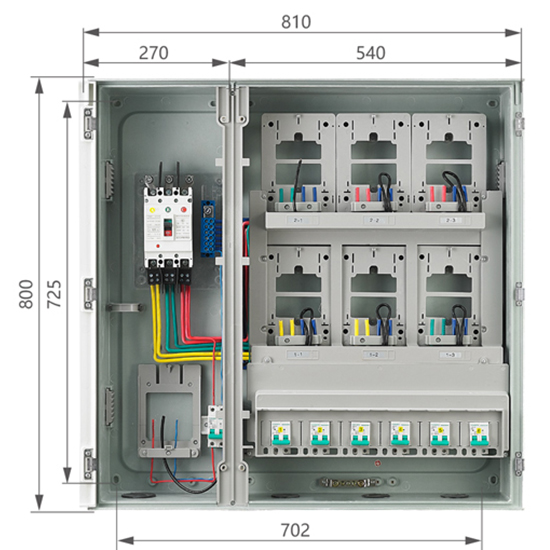

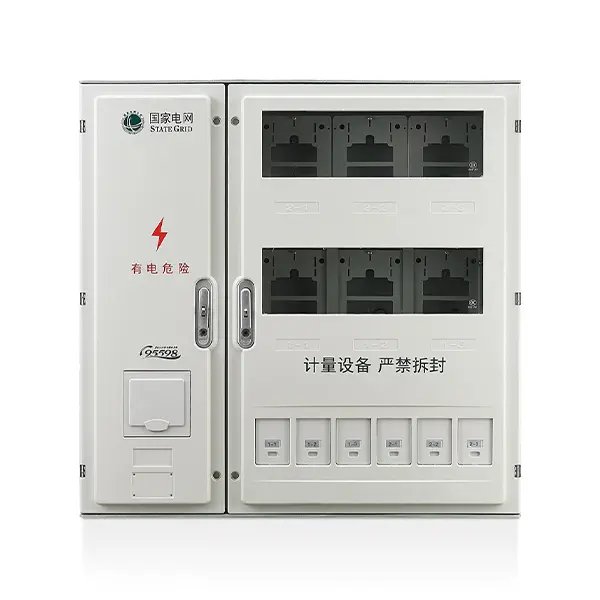

| TY | SX | D2 | 6 | A |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Single-phase multi-meter metering box | Table number | First Generation |
| Configuration | Name | Component Model | Qty |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | CDMK-125C/3300 125A | 1 |
| Outlet switch | Miniature circuit breakers | CDBKs C type 2P 63A dedicated to power grid | 6 |
| Power supply | breaker | CDBK C type 2P 6A | 6 |

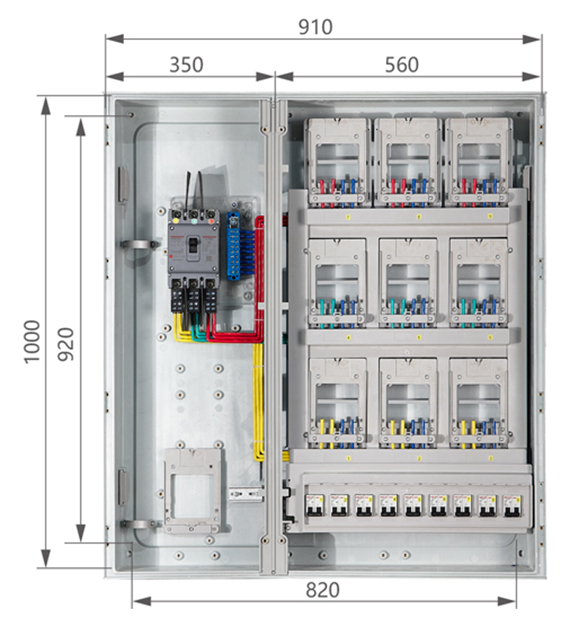

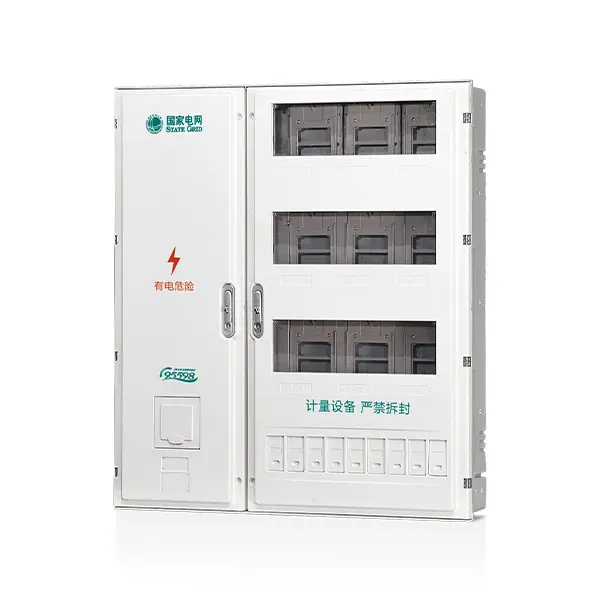

| TY | SX | D2 | 9 | A |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Single-phase multi-meter metering box | Table number | First Generation |
| Configuration | Name | Component Model | Qty |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | CDMK-250C/3300 200A | 1 |
| Outlet switch | Miniature circuit breakers | CDBKs C type 2P 63A dedicated to power grid | 9 |

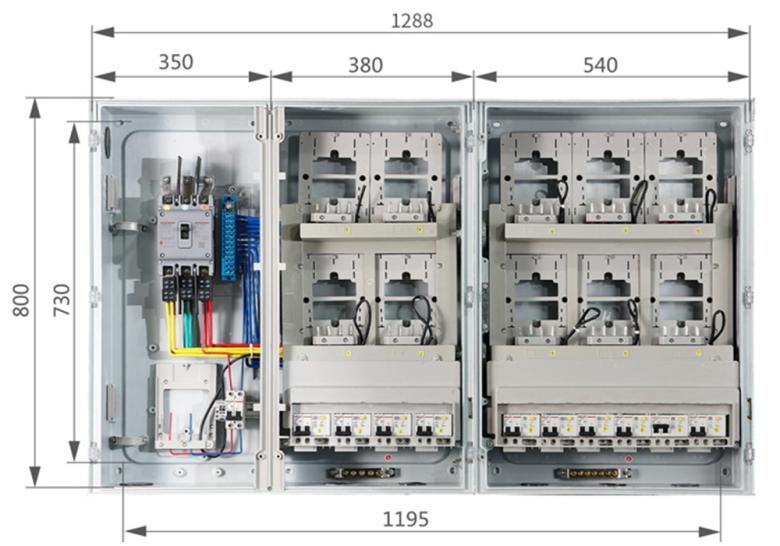

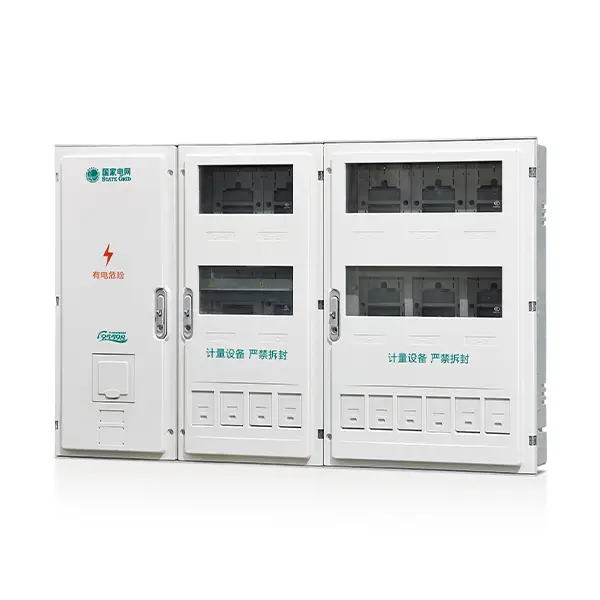

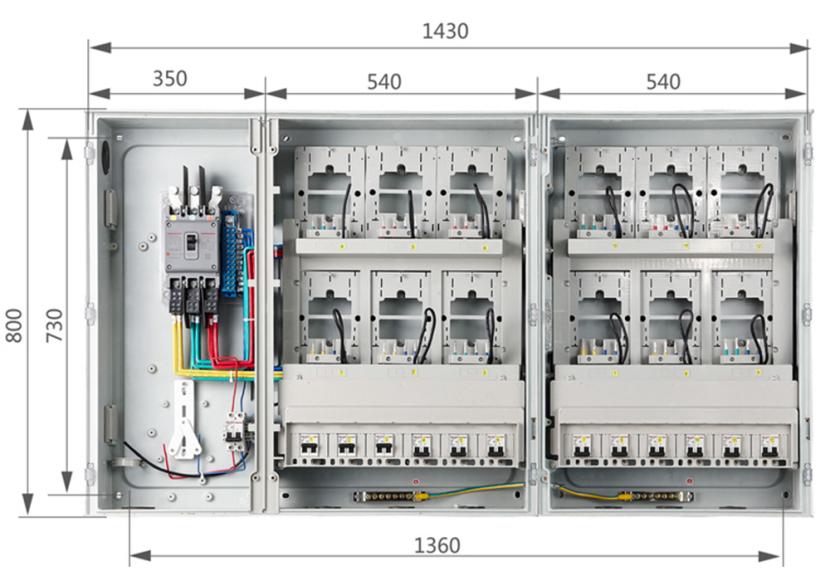

| TY | SX | D2 | 10 | A |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Single-phase multi-meter metering box | Table number | First Generation |
| Configuration | Name | Component Model | Qty |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | CDMK-250C/3300 200A | 1 |
| Outlet switch | Leakage circuit breaker | CDBKs C type 2P 63A dedicated to power grid | 10 |
| Power supply | breaker | CDBK C type 2P 6A | 1 |
| TY | SX | D2 | 12 | A |
|---|---|---|---|---|
| Company Code | SMC non-metallic metering box | Single-phase single-meter metering box | Table number | First Generation |
| Configuration | Name | Component Model | Qty |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | CDMK-250C/3300 200A | 1 |
| Outlet switch | Miniature circuit breakers | CDBKs C type 2P 63A dedicated to power grid | 12 |
| Power supply | breaker | CDBK C type 2P 6A | 1 |
Frequently Asked Questions (FAQ)
The box adopts SMC (Sheet Molding Compound) glass fiber reinforced plastic compression molding technology. It offers reliable insulation, high strength, flame retardancy (GB standards compliant), corrosion resistance, anti-aging properties, and a rain-proof design.
It features strong durability designed to last up to 40 years when installed indoors and up to 30 years for outdoor installations.
The operating temperature range is -25℃ to +50℃ (with a daily average temperature of ≤35℃). The humidity should be ≤80%RH at 40℃ (higher humidity is acceptable at lower temperatures). It should be installed in a cool, dry, vibration-free, and corrosion-free location away from direct sunlight.
The products are designed to meet a security protection level of IP 44, providing protection against solid objects larger than 1mm and splashing water.
Yes. The SMC non-metallic material is not resistant to strong alkalis, oxidizing acids, and similar chemicals. Additionally, precautions must be taken during transport and installation to prevent collisions and scratches on the surface.
The box must be installed vertically, ensuring that the installation tilt angle does not exceed 54 degrees (tilt ≤ 54°).
