Product Description
Core Features
Made of SMC glass fiber reinforced plastic, offering superior insulation, outstanding impact resistance, and UL94 V-0 flame retardant performance.
Delivers an indoor operational lifespan of >40 years and an outdoor lifespan of >30 years, significantly outlasting conventional metal and plastic enclosures.
High corrosion resistance and anti-aging properties with a refined finish, fully reliable across extreme operating temperatures from -25℃ to +50℃.
Engineered with an integrated rainproof structure optimized for outdoor deployments, achieving standard IP54 ingress protection.
Application Scenarios
Supports single-household, cross-household, and scalable multi-meter modular assemblies (e.g., configurations ranging from 1 to 16 meters).
Ideal for residential communities and civil substations, fully compatible with 220V to 690V single-phase and three-phase power distribution networks.
Features structured internal concealed wiring design, suitable for both wall-mounted and pole-mounted installations with convenient on-site maintenance.

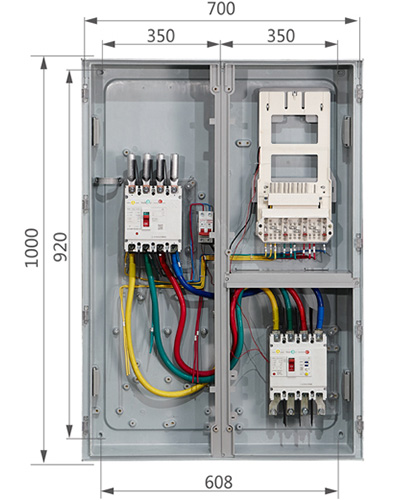

TY-SXS3-1A-FJ Model Specifications & Dimensions
| TY | SX | S3 | 1 | A | FJ |
| Company Code | SMC non-metallic metering box | Meter connected via transformer | Table number | First Generation | Fujian |
| Configuration | Component Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | NM1B-250S/4300A 225A meter box dedicated | 1 |
| Outlet switch | Molded case leakage circuit breaker | NXMLE-250S/4310AY 200A F 0.2s AC230V Household meter | 1 |
| Power supply | Breaker | NBP-63 2P C6 dedicated | 1 |
| Electric meter bracket | Three-phase gap type transformer connector | 60A | 1 |

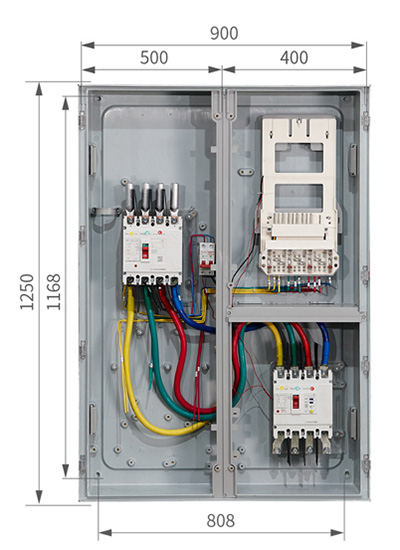

TY-SXS3-1B-FJ Model Specifications & Dimensions
| TY | SX | S3 | 1 | B | FJ |
| Company Code | SMC non-metallic metering box | Meter connected via transformer | Table number | Second Generation | Fujian |
| Configuration | Component Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | NM1B-250S/4300A 250A meter box dedicated | 1 |
| Outlet switch | Molded case leakage circuit breaker | NXMLE-250S/4310AY 250A F 0.2s AC230V Household meter | 1 |
| Power supply | Breaker | NBP-63 2P C6 dedicated | 1 |
TY-SXS3-2A-FJ Model Specifications & Dimensions
| TY | SX | S3 | 2 | A | FJ |
| Company Code | SMC non-metallic metering box | Meter connected via transformer | Table number | First Generation | Fujian |
| Configuration | Component Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | NM1B-250S/4300A 250A meter box dedicated | 1 |
| Outlet switch | Molded case leakage circuit breaker | NXMLE-250S/4310AY 200A F 0.2s AC230V Household meter | 1 |
| Outlet switch | Molded case leakage circuit breaker | NXMLE-125S/4310AY 125A F 0.2s AC230V Household meter | 1 |
| Power supply | Breaker | NBP-63 2P C6 dedicated | 1 |
