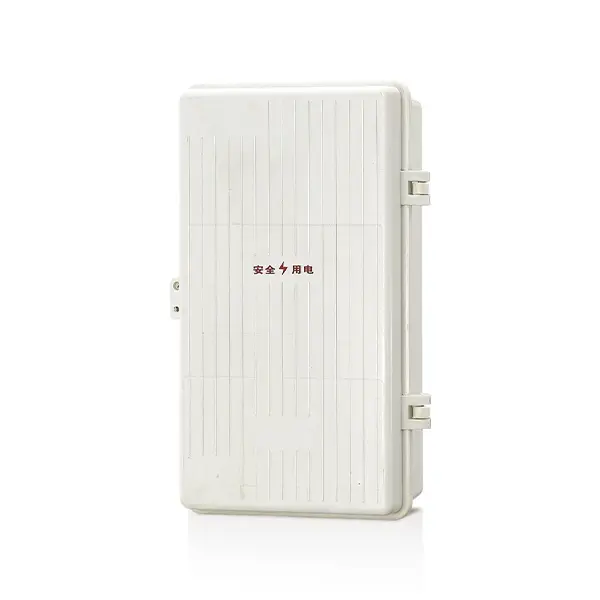

China TY-SXS1-CJ Three-Phase Collector Box - Reliable Electrical Solution from China Suppliers and Factory Supplier, Factory
Product Description
Material Properties
- Made of SMC fiberglass composite material
- High mechanical strength and excellent insulation
- Passed UL94 V-0 flame retardant certification
- Acid and alkali corrosion resistance, UV aging resistance
Product Advantages
- Indoor service life ≥ 40 years
- Outdoor service life ≥ 30 years
- Surface finish Ra ≤ 0.8μm
- Modular combination design (supports flexible configuration of 1-12 households)
Application Features
- Supports both open and concealed installation
- Integrated rainproof canopy design (protection level IP54)
- Hidden wiring channel
- Applicable to -40°C to +80°C environment
Product Effects
- 1. Power collection: The three-phase collector box can collect the three-phase current from different power sources together to facilitate subsequent distribution and use.
- 2. Power distribution: It can distribute the collected power to multiple loads or devices to ensure efficient use of power.
- 3. Protection function: The collector box is usually equipped with protection devices, such as overload protection, short-circuit protection, etc., which can effectively prevent electrical faults from damaging equipment and personnel.
- 4. Fault monitoring: Some collector boxes are equipped with monitoring systems that can monitor current, voltage and other parameters in real time, detect faults in time and issue alarms.
- 5. Improved safety: By enclosing cable connections and electrical components in the collector box, electric shock and other safety risks are reduced, and the safety of operation and maintenance is improved.
Applications
- 1. Industrial production: Widely used in factories, mines, metallurgy and other industrial places for centralized collection and distribution of three-phase power.
- 2. Construction site: On the construction site, the collector box is used to distribute temporary power to ensure the normal operation of construction equipment.
- 3. Power system: Used for centralized management and distribution of electricity in power substations, distribution rooms and other places.
- 4. Commercial facilities: Used for the distribution and management of electricity in large commercial facilities such as shopping malls, supermarkets, etc.
- 5. Water treatment and sewage treatment plants: Used to collect and distribute electricity to ensure the normal operation of equipment.

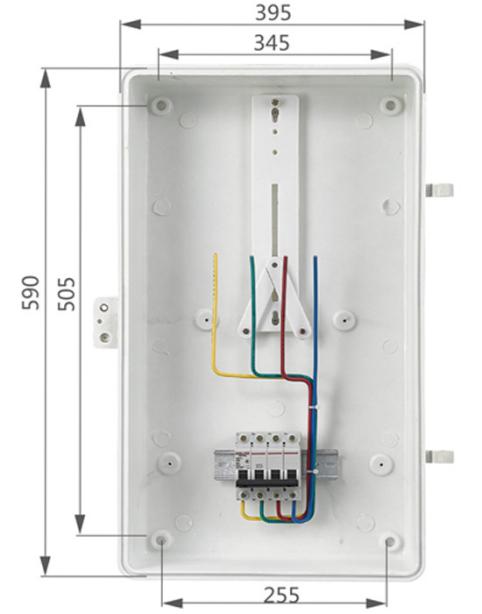

TY-SXS1-CJ Model, Configuration and Installation Dimensions
| TY | SX | S1 | CJ |
|---|---|---|---|
| Company Code | SMC non-metallic metering box | Three-phase single meter box | Collection |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Miniature circuit breakers | CDBK C type 4P 10A | 1 |
Frequently Asked Questions (FAQ)
What materials are used in the TY-SXS1-CJ collection box?
The box is manufactured from premium SMC fiberglass composite material. This construction delivers high mechanical strength, superior electrical insulation, resistance to acid and alkali corrosion, and UV aging resistance. It has also passed the UL94 V-0 flame retardant certification.
What is the expected service life of this SMC metering box?
This non-metallic metering box is designed for exceptional durability, offering an indoor service life of at least 40 years and an outdoor service life of 30 years or more.
Can this box be installed outdoors, and what is its weather protection rating?
Yes, it features an integrated rainproof canopy design with an IP54 protection rating, making it highly suitable for outdoor installations. It operates reliably in temperatures ranging from -40°C to +80°C.
Does the TY-SXS1-CJ support multi-household configurations?
Yes, the product features a modular combination design that supports flexible configurations from 1 to 12 households to suit various application demands.
What safety protection features does the collector box include?
The collector box is designed to safely enclose cable connections and electrical components, reducing electric shock risks. It is typically equipped with protection devices like miniature circuit breakers to provide overload and short-circuit protection.
