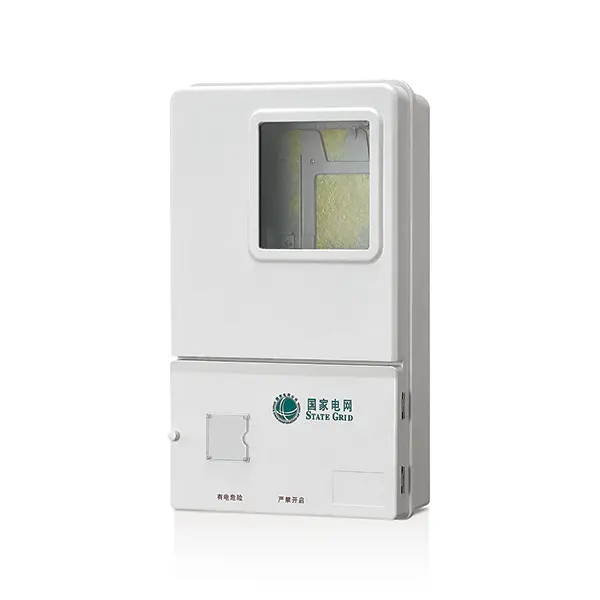

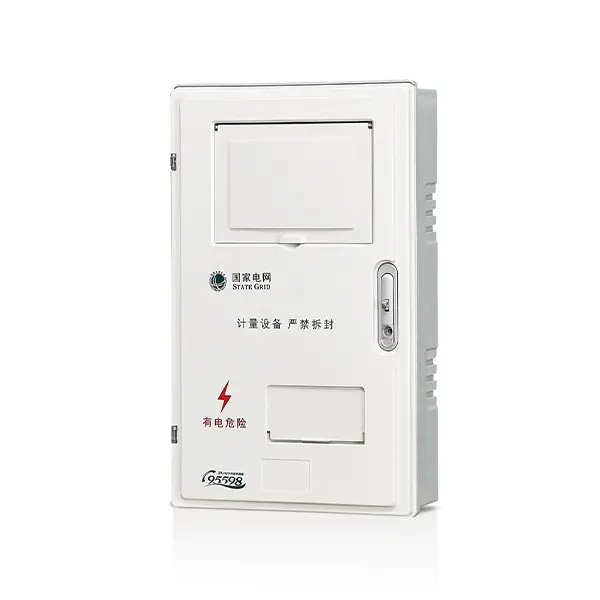

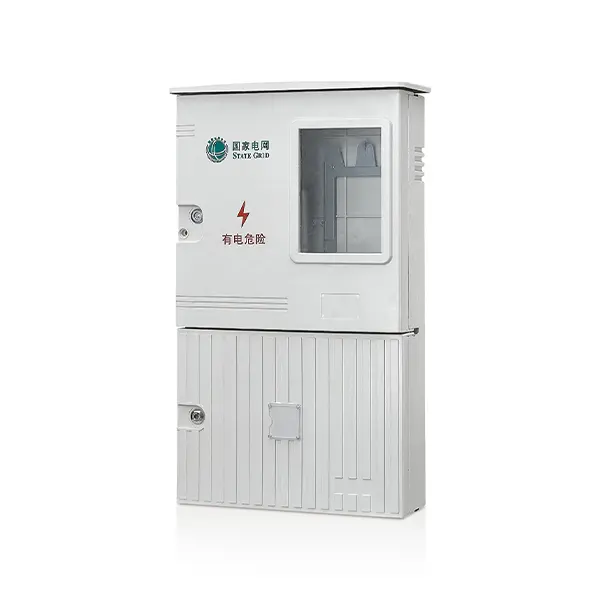

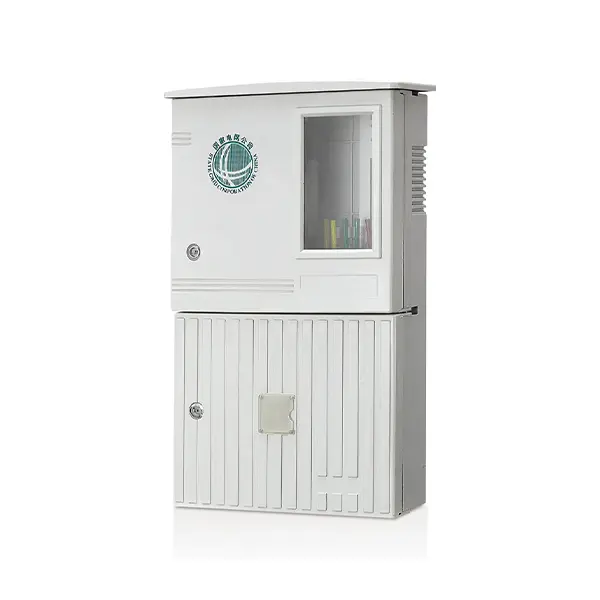

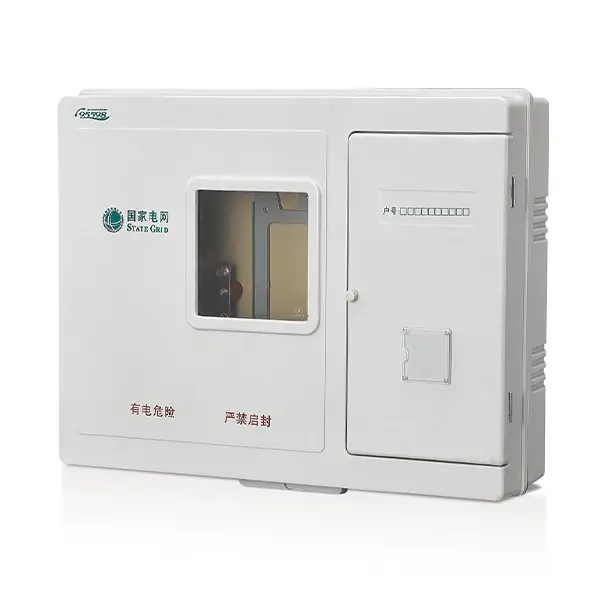

Product Description
Excellent Material
SMC glass fiber reinforced plastic molding, featuring high insulation (≥20MΩ), high impact resistance (30KA short-term tolerance), and UL94 V-0 flame retardant performance.
Ultra-Long Life
Designed for heavy-duty service with a lifespan exceeding 40 years indoors and over 30 years outdoors. Corrosion-resistant, anti-aging, with a smooth, aesthetic surface.
Flexible Application
Supports single-phase (220V) and three-phase (380V/690V) energy metering. Current coverage ranges from 10A to 250A. Adaptable for single-household, multi-household, or cross-household combinations.
Environmental Adaptability
Reliable operation within a temperature range of -25°C to +50°C and relative humidity ≤80% (at 40°C). IP44 protection rating ensures robust outdoor rainproof performance.
Safety Specification
Fully complies with GB standards. Features an insulation voltage of 800V and frequency compatibility with both 50Hz and 60Hz systems.
- The installation should be vertical (tilt ≤ 54°), away from corrosive chemicals (avoid strong alkali, ketones, and chlorinated hydrocarbons).
- Avoid direct sunlight and mechanical collision; install in a dry and vibration-free environment.
- During installation, remove the bottom screws first and fix the expansion tube according to the positioning holes.

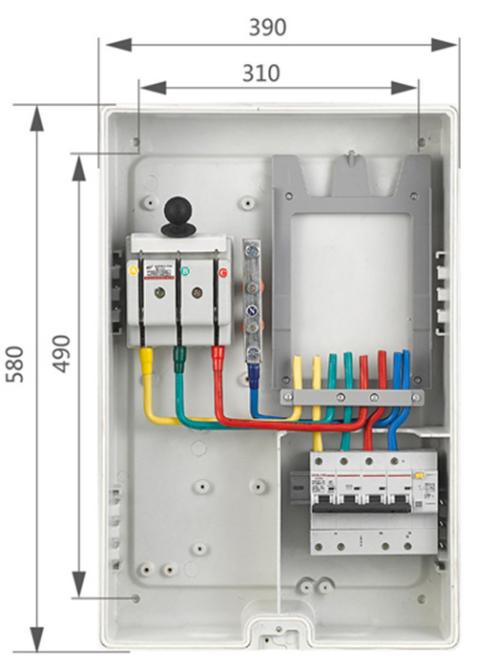

TY-SXS1-1H Model, Configuration and Installation Dimensions
| TY | SX | S1 | 1 | H |
| Company Code | SMC non-metallic metering box | Three-phase single-meter metering box | Table number | Eighth Generation |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Disconnector | HD11F-100/38 100A | 1 |
| Outlet switch | Leakage circuit breaker | CDBLEK-125 4P li(C) 100A | 1 |

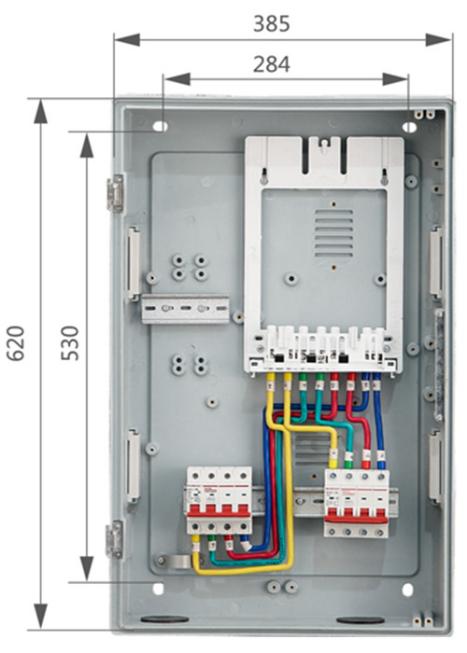

TY-SXS1-NX1 Model, Configuration and Installation Dimensions
| TY | SX | S1 | NX1 |
| Company Code | SMC non-metallic metering box | Three-phase single-meter metering box | Ningxia |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Disconnector | CDGK 4P 100A | 1 |
| Outlet switch | Miniature circuit breakers | CDBKs C type 4P 63A dedicated to power grid | 1 |

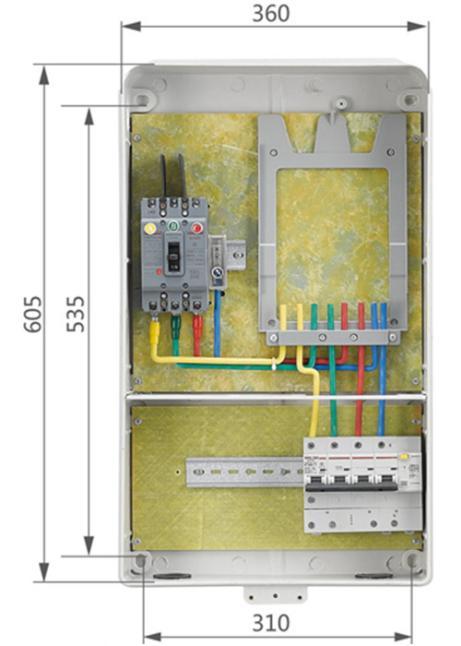

TY-SXS1-1B Model, Configuration and Installation Dimensions
| TY | SX | S1 | 1 | B |
| Company Code | SMC non-metallic metering box | Three-phase single-meter metering box | Table number | Second Generation |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Molded case circuit breaker | CDMK-125C/3300 125A | 1 |
| Outlet switch | Leakage circuit breaker | CDBLEK-125 4P li(C)100A | 1 |

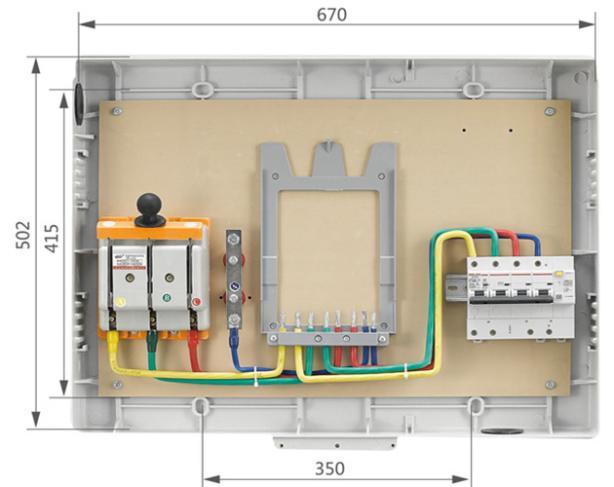

TY-SXS1-1C Model, Configuration and Installation Dimensions
| TY | SX | S1 | 1 | C |
| Company Code | SMC non-metallic metering box | Three-phase single-meter metering box | Table number | Third Generation |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming terminal | Disconnector | HD11F-100/38 100A | 1 |
| Outlet switch | Leakage circuit breaker | CDBLEK-125 4P li(C)100A | 1 |

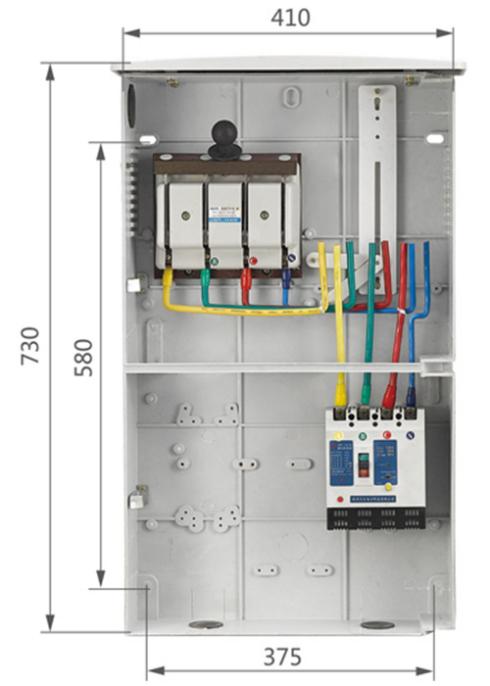

TY-SXS1-1D Model, Configuration and Installation Dimensions
| TY | SX | S1 | 1 | D |
| Company Code | SMC non-metallic metering box | Three-phase single-meter metering box | Table number | Fourth Generation |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming switch | Disconnector | HD11F-200/48 200A 19CM | 1 |
| Outlet switch | Molded case circuit breaker | CDMK-250C/3300 200A | 1 |

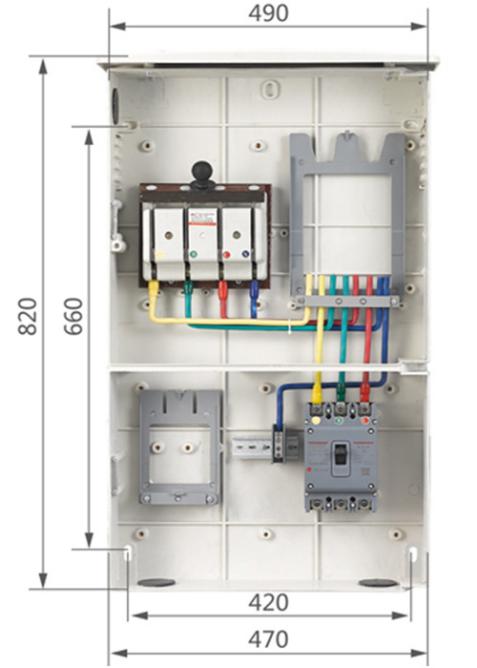

TY-SXS1-1E Model, Configuration and Installation Dimensions
| TY | SX | S1 | 1 | E |
| Company Code | SMC non-metallic metering box | Three-phase single-meter metering box | Table number | Fifth Generation |
| Configuration | Name | Component Model | Quantity |
|---|---|---|---|
| Incoming terminal | Disconnector | HD11F-200/48 200A 19CM | 1 |
| Outlet switch | Molded case circuit breaker | CDMK-250C/3300 200A | 1 |
Frequently Asked Questions (FAQ)
What are the core material advantages of the TY series fiberglass meter box?
The TY series is molded from SMC glass fiber reinforced plastic, which provides high insulation (≥20MΩ), excellent impact resistance (30KA short-term tolerance), and UL94 V-0 flame retardant performance.
What is the expected service life of these meter boxes in outdoor environments?
Thanks to their corrosion-resistant and anti-aging properties, these meter boxes have a service life of over 30 years in outdoor environments and more than 40 years when installed indoors.
What electrical configurations and voltage levels do the TY series support?
They support single-phase (220V) and three-phase (380V/690V) energy metering with a current capacity ranging from 10A to 250A. The insulation voltage is rated up to 800V at 50/60Hz frequency.
What are the critical environmental and installation requirements?
The box should be installed vertically (tilt angle ≤ 54°) in a dry, vibration-free environment away from direct sunlight, mechanical collisions, and corrosive chemicals like strong alkalis, ketones, or chlorinated hydrocarbons. The ambient working temperature should be between -25°C and +50°C.
How do I install the TY series meter box securely?
When installing, you must first remove the screws located at the bottom of the enclosure and then fix the expansion tube securely according to the pre-marked positioning holes.
