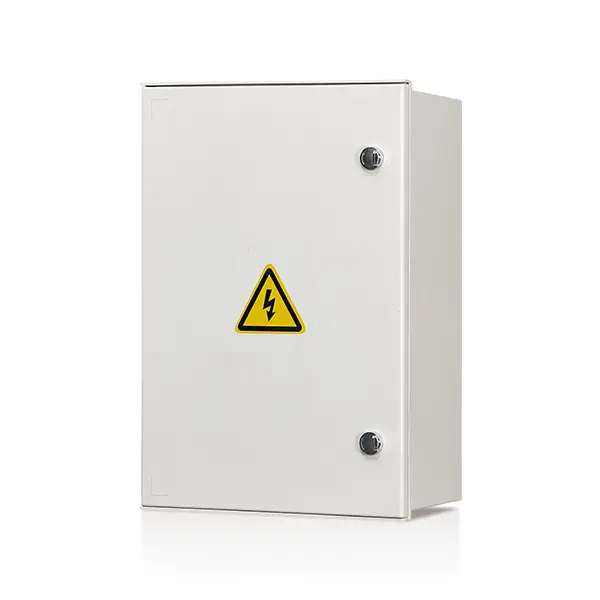

China China TY-SXD1-FSH1 Waterproof Box - Durable IP44 Meter Protection from Trusted Suppliers and Factory Suppliers, Factory
Product Description
Product Use Scope and Conditions of Use
The TY series of electric energy meter boxes integrate single-phase and three-phase types, and are suitable for power supply systems with rated current of 10A-250A, AC 50Hz or 60Hz, and voltage of 220V to 690V, and perform single-phase and power electric energy metering and control tasks; its operating environment requires a temperature range of -25℃～+50℃ (average temperature ≤+35℃ within 24 hours), and the relative humidity does not exceed 80% at 40℃ under clean air conditions, and higher humidity levels are allowed under low temperature conditions.
Installation Specifications
Thoroughly check the structural integrity and component completeness of the cabinet before installation.
Use vertical installation, and the inclination angle is strictly controlled within the range of ≤5°. Site selection principle: no mechanical vibration/strong impact source, no chemical corrosion risk area. Deploy in a cool and dry environment, avoiding continuous direct sunlight.
Do not contact with strong alkalis, oxidizing acids, amines, ketones, chlorinated hydrocarbons and aromatic solvents.
During use, be careful to prevent collisions and scratches with sharp objects to keep the surface protective layer intact.
Standardized Installation Process
Box opening
Remove the central fixing screw at the bottom and open the box according to the standard process.
Basic fixation
Locate the wall drilling point according to the preset hole position, lock the base after implanting the expansion tube, and perform the final assembly of the upper cover.
Key protection specifications
| Protection Category | Implementation Standard |
|---|---|
| Mechanical protection | Avoid vibration and shock sources and regularly check the fixed structure |
| Chemical protection | Establish a hazardous chemical isolation mechanism |
| Environmental protection | Implement temperature and humidity monitoring and UV shielding measures |
Strict compliance with this specification can significantly extend the service life of metering equipment and ensure the reliability of power system operation.
Core Electrical Parameters
1. Core performance indicators
| Parameter Category | Technical Specifications |
|---|---|
| Rated current | 10A–250A (full range coverage) |
| Short-time withstand current | ≥30kA (main busbar system) |
2. Insulation performance
| Parameter Category | Technical Specifications |
|---|---|
| Insulation resistance | ≥20MΩ (normal working condition) |
| Rated insulation voltage | 800V (UI value) |
| Electrical adaptability | 50Hz/60Hz dual frequency compatible |
| Protection level | IP44 (dust and splash proof) |
3. Key Features
- Current carrying capacity: The main busbar supports a wide current load range from 10A to 250A.
- Short circuit protection: 30kA high short circuit current tolerance ensures system stability.
- Insulation reliability: Double insulation design (resistance/voltage) ensures safe operation.
- Environmental adaptability: IP44 protection level to cope with dust and liquid splashing scenes.

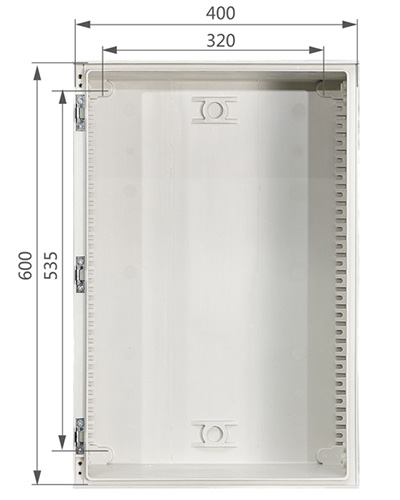

Appearance and Installation Dimensions
Frequently Asked Questions (FAQ)
What is the compatible current and voltage range for TY series meter boxes?
The TY series is suitable for power supply systems with a rated current of 10A-250A, AC 50Hz or 60Hz, and a voltage range of 220V to 690V.
What are the environmental temperature requirements for these meter boxes?
The operating environment requires a temperature range of -25℃ to +50℃, with the average temperature not exceeding +35℃ within a 24-hour period.
What is the protection level of the TY series electric energy meter boxes?
The protection level is IP44, which ensures effective protection against dust and liquid splashes in various environments.
What are the installation angle limits for the meter boxes?
The TY series meter box must be installed vertically, and the inclination angle must be strictly controlled to be less than or equal to 5°.
Which chemicals should the meter box avoid contact with?
To prevent degradation, the box must not come into contact with strong alkalis, oxidizing acids, amines, ketones, chlorinated hydrocarbons, and aromatic solvents.
What is the short-circuit current tolerance of the TY series?
The system features a short-time withstand current of ≥30kA for the main busbar system, ensuring exceptional stability and protection against short circuits.
