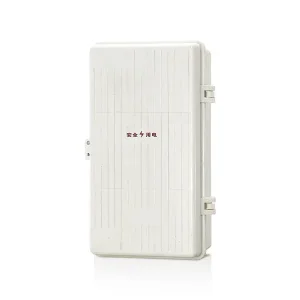

Wholesale TY-SXS1-CJ Three-Phase Collector Box - Reliable Electrical Solutions from China Suppliers and Factory Suppliers, Factory
Wholesale Stainless steel three-phase(hanging type) Factories, Factory
Wholesale China TY Three-Phase Electric Energy Metering Box (Transformer Type) - Suppliers and Factory Direct Solutions Factories, Factory
China China Ring Main Unit RMU: Reliable Power Distribution Solutions from Leading Suppliers and Factory Supplier, Factory

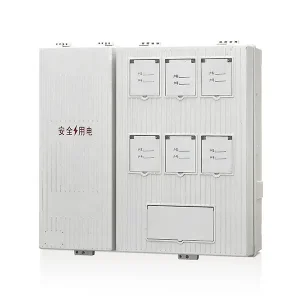

Wholesale TY Single-Phase Electric Energy Metering Box from China Suppliers and Factory - Safe & Reliable Outdoor Use Manufacturer, Suppliers
Wholesale China TY-SXD1-1C Single-Phase Collector Box - Reliable Power Measurement Solutions from Top Suppliers and Factory Supplier, Factory
Global Ring Main Unit (RMU) Sourcing Requirements & Market Drivers
Macroeconomic structural shifts, urban grid densification, and the worldwide transition to intermittent renewable energy have transformed secondary power distribution switchgear procurement from a basic equipment purchase into a strategic risk-mitigation imperative.
Decentralized Generation Integration
Global utility EPCs and energy concessionaires now prioritize Ring Main Units configured for bidirectional power flow. The explosive growth of commercial rooftop photovoltaics, utility-scale wind farms, and battery energy storage systems (BESS) exposes medium-voltage ring distribution networks to severe reverse power surges and erratic fault patterns. Modern sourcing mandates RMUs engineered with advanced protective micro-relays and automated fault isolation units capable of tripping within 20 milliseconds to safeguard sensitive distributed generation assets.
- Bidirectional power-sensing CTs and VTs
- Rapid directional overcurrent & earth fault relays
- Low-loss copper primary busbars rated up to 630A
Grid Automation & Smart Substation Telemetry
The global shift toward unmanned, self-healing smart power grids has rendered passive mechanical switchgear obsolete. Tenders issued across Europe, the Middle East, Southeast Asia, and Latin America mandate Ring Main Unit systems equipped with Integrated Remote Terminal Units (RTUs), Motorized Actuators, and Feeder Automation Systems (FAS). Factory-fitted digital interfaces provide automated fault location, isolation, and service restoration (FLISR), drastically compressing System Average Interruption Duration Index (SAIDI) metrics for commercial power utilities.
- Native IEC 61850 & Modbus TCP/IP communication
- 24V/48V DC motorization mechanism for line control
- Integrated capacitive voltage indicators & live sensors
Extreme Environmental Durability
Energy operators demand secondary distribution equipment that exhibits complete operational resilience against environmental degradation. Coastal salt fog, industrial chemical atmospheres, subterranean humidity, and desert temperature swings can degrade ordinary switchgear enclosures within five years. Procurement specifications increasingly favor SMC fiberglass composite enclosures and marine-grade stainless steel (AISI 304/316) gas tanks hermetically sealed via robotic laser welding to guarantee maintenance-free lifespans extending well beyond thirty years.
- Resistance to Class C5-M extreme marine corrosive zones
- Temperature tolerances spanning -25°C to +50°C
- IP67 laser-welded stainless steel gas tanks
Enterprise-Grade Macro Solutions Across Critical Infrastructure
Ring Main Unit systems serve as the core protection node in secondary medium-voltage power distribution networks. Below is an engineering overview of deployment configurations across major industrial sectors.
Urban Underground Cable Grids & Smart Real Estate
In high-density metropolises, surface land constraints preclude traditional outdoor switchgear yards. Chinese factory-engineered compact Gas Insulated Switchgear (GIS) Ring Main Units and Solid Insulated Switchgear (SIS) provide an ultra-compact footprint—frequently below 0.4 square meters per circuit bay. Combined with SMC fiberglass collector boxes and multi-metering stations like the TY-SXD2 series, high-rise commercial structures and municipal residential blocks achieve end-to-end power integrity from the 10-24kV ring feeder down to 220V/380V individual tenancy branch circuits with concealed, tamper-proof conduit safety.
Renewable Power Parks: Solar PV & Energy Storage BESS
Utility-scale photovoltaic installations and grid-scale lithium energy storage plants demand durable medium-voltage collection architectures. Ring Main Units act as the central linking interface between pad-mounted step-up transformers (0.6kV/0.8kV to 11kV/33kV) and the main substation collector bus. Incorporating transformer-type metering cabinets (such as TY-SXS3) with CT/VT secondary winding chambers ensures high-precision billing metering and anti-islanding isolation under severe UV and fluctuating harmonic environments.
Heavy Industrial & Petrochemical Facilities
Chemical processing plants, deep mining operations, and metallurgic facilities generate aggressive chemical fumes and demand continuous uptime. A momentary interruption can trigger catastrophic production halts. China-engineered Ring Main Unit systems paired with intermediate protection boxes and stainless steel three-phase enclosures provide sealed vacuum interruption chambers and robust mechanical interlocks (Five-Prevention Anti-Misoperation mechanisms) that eliminate human error during phase inspection and cable maintenance cycles.
Rail Transit & Electrified Transport Corridors
Electrified railways, rapid transit metros, and commercial high-speed EV charging plazas impose continuous, dynamic step-load transients. Teyi Electric's medium-voltage RMUs and pole-mounted breaker switchgear deliver exceptional dynamic stability with short-term current ratings up to 30kA withstand capacity, mitigating the thermal and electrodynamic stresses caused by sudden traction motor current draw and short circuits.
Ring Main Unit Technical Specifications & Engineering Matrix
A comprehensive engineering reference for utility buyers and project engineers evaluating insulation methodologies, operational thresholds, and technical parameters.
| Technical Metric / Specification | Gas-Insulated RMU (SF6 Sealed) | Solid-Insulated RMU (SIS Epoxy) | Eco-Gas / Clean-Air RMU |
|---|---|---|---|
| Rated Voltage (Ur) | 12 kV / 24 kV / 40.5 kV | 12 kV / 24 kV | 12 kV / 24 kV |
| Rated Current (Ir) | 630 A – 1250 A | 630 A | 630 A – 1250 A |
| Short-Time Withstand (Ik / tk) | 20 kA / 25 kA / 31.5 kA (4s) | 20 kA / 25 kA (4s) | 20 kA / 25 kA (4s) |
| Peak Withstand Current (Ip) | 50 kA / 63 kA / 80 kA | 50 kA / 63 kA | 50 kA / 63 kA |
| Power Frequency Withstand | 42 kV (Common) / 48 kV (Isolating) | 42 kV / 48 kV | 42 kV / 48 kV |
| Lightning Impulse Withstand (BIL) | 75 kV (Common) / 85 kV (Isolating) | 75 kV / 85 kV | 75 kV / 85 kV |
| Internal Arc Classification (IAC) | A-FL / A-FLR up to 20 kA 1s | A-FL / A-FLR up to 20 kA 1s | A-FL / A-FLR up to 21 kA 1s |
| Global Warming Potential (GWP) | High (SF6 = 23,500) | Zero GWP Emission | < 1 (Fluoronitrile / N2 / Dry Air) |
| Enclosure Protection Class | IP67 (Gas Tank) / IP4X (Enclosure) | IP67 (Epoxy Phase) / IP4X | IP67 (Hermetic Tank) / IP4X |
| Ambient Temperature Tolerance | -40°C to +50°C | -45°C to +45°C | -40°C to +50°C |
Engineering Roadmap: The Next Era of Sustainable Medium-Voltage Networks
Chinese switchgear manufacturing centers are transitioning from traditional mechanical fabrication to state-of-the-art solid-state, eco-gas, and sensor-fused smart power architectures.
1. Phase-Out of Fluorinated Gases (SF6-Free)
Global regulatory frameworks—notably the European Union F-gas Regulation (EU 2024/573) and corresponding global greenhouse mitigation treaties—require complete phase-out of SF6 in medium-voltage switchgear installations. Teyi Electric and leading Yueqing manufacturing consortia have industrialized alternate switching architectures:
- Dry compressed synthetic air with high-vacuum interrupters
- Solid dielectric epoxy resin casting with individual shielded phases
- C4-FN fluoronitrile / CO2 alternative gas mixtures for cold climates
2. Digital Twins & Embedded IoT Diagnostics
The modernization of the Ring Main Unit is centered on real-time embedded sensor integration. Passive mechanical equipment cannot predict electrical arc ignition or joint overheating. Contemporary digital RMU architectures incorporate:
- Surface Acoustic Wave (SAW) wireless contact temperature monitoring
- Non-intrusive partial discharge (TEV / UHF) sensor suites
- Real-time micro-leak laser detection for gas chambers
- Cloud-synchronized edge computing modules for predictive maintenance
3. Ultra-Safe Internal Arc Containment (IAC)
Safety benchmarks for operating personnel have driven significant structural redesigns of secondary RMU housings. If an internal catastrophic phase-to-earth fault occurs, expansive hot plasma gases must be channeled safely away from front, side, and rear maintenance staff. Modern production utilizes:
- Dual downward and rearward gas exhaust venting corridors
- Reinforced gas-cooling ceramic baffles and arc quenching ducts
- Explosion-proof interlocked viewing ports and pressure release membranes
Factory Verification, Quality Auditing & Global Compliance
Ensuring absolute compliance with International Electrotechnical Commission (IEC), IEEE, and regional utility directives through strict multistage Factory Acceptance Testing (FAT).
IEC 62271-200 Type Certification
Every RMU configuration (C-V-F-D modules) undergoes type testing verified by accredited laboratories (such as KEMA, ASTA, or national high-voltage testing institutes), confirming dynamic withstand, short-circuit making, temperature rise limits, and mechanical endurance.
Hermetic Helium Mass Spectrometry
Gas tanks undergo high-vacuum chamber helium leak inspection during mass production. Tanks are evaluated to verify that aggregate annual gas leakage remains strictly below 0.1% per annum, guaranteeing an operational life in excess of thirty years without supplementary gas charging.
100% FAT Dielectric Withstand
Every serial production panel is subjected to routine factory testing: 1-minute power frequency withstand at 42kV/48kV, main circuit resistance testing (conducted via 100A DC micro-ohmmeter), and 100% mechanical open/close interlock cycling prior to packaging.
Marine-Grade Packaging Protocols
Export switchgear is sealed in vapor-barrier vacuum aluminum foil lining with industrial desiccant bags, supported by reinforced base skid pallets and fumigated plywood structural crating engineered to withstand long sea shipping transit shocks and tropical humidity.
Frequently Asked Questions: Global RMU Procurement & Manufacturing
In-depth technical answers addressing specifications, lead times, customizations, and standards compliance for EPC contractors and utility procurement officers.
What are the key technical distinctions between SF6 Gas Insulated, Solid Insulated, and Air Insulated RMUs?
Gas Insulated Switchgear (GIS) RMUs utilize sulfur hexafluoride (SF6) gas sealed in a stainless-steel tank, delivering maximum compactness and total immunity to ambient airborne dust, moisture, and chemical contamination. However, SF6 is a potent greenhouse gas that is increasingly regulated. Solid Insulated Switchgear (SIS) encapsulates each vacuum-interrupter phase directly inside cycloaliphatic epoxy resin, eliminating insulating gas entirely while maintaining a small footprint. Air Insulated Switchgear (AIS) uses atmospheric air as the dielectric medium, which is eco-friendly and allows easier maintenance, but requires significantly larger installation space and clear environmental climate control to avoid partial discharge.
Can Chinese Ring Main Unit factories supply customized breaker/switch configurations (e.g., CCF, CCC, CCVV)?
Yes. Chinese manufacturers excel in modular production architecture. Standard modular configurations include C (load break switch module), V (vacuum circuit breaker module), F (fuse-switch disconnector combination), and D (direct cable incoming connection). Common combinations such as 3-way (CCF, CCC, CVV) or 4-way (CCFF, CCCV, CCCC) are available as integrated communal tanks or extensible side/top busbar modular lineups. Engineering teams adapt the physical dimensions, cable compartment clearances, and auxiliary contacts to precisely mirror your utility tender drawings.
What is the standard short-time withstand current rating for three-phase distribution enclosures and RMUs?
For low-voltage metering and collector stations (e.g., our TY-SXS1 and TY-SXD2 lines), the main copper busbars are rated for continuous nominal currents from 10A to 250A, featuring a 30kA peak/short-term withstand capability designed to handle dynamic fault forces. For medium-voltage RMUs operating between 12kV and 36kV, standard ratings provide 20kA, 21kA, or 25kA for a duration of 3 to 4 seconds, accompanied by a 50kA or 63kA peak making current capacity.
How do SMC fiberglass metering enclosures compare to stainless steel cabinets in coastal installations?
Sheet Molding Compound (SMC) fiberglass reinforced polymer offers inherent dielectric insulation, eliminating touch-potential hazards and the need for earthing the external housing. Chemically inert, SMC cannot rust, corrode, or degrade even under continuous salt-fog exposure, making it the premier material choice for marine environments, coastal utility substations, and humid climates. Stainless steel (AISI 304 or 316) provides superior impact strength and tamper resistance in public or high-vandalism zones, but requires proper grounding and has a higher material cost.
What documentation and inspection reports are delivered with overseas equipment shipments?
Every commercial consignment includes comprehensive quality documentation: official Factory Acceptance Test (FAT) records, helium leak spectrometer trace reports, dielectric insulation resistance results, mill test certificates for main copper busbars, Certificate of Origin (CO), bill of materials, user installation manuals, and third-party laboratory Type Test reports (verifying conformity with IEC 62271-1, IEC 62271-100, IEC 62271-200, and IEC 61439 standards).
High-Performance Distribution & Metering Inventory
Complete secondary distribution portfolio: outdoor cable branch solutions, industrial transformer cabinets, and precision smart grid metering infrastructure.
China TY-SXS1-CJ Three-Phase Collector Box - Reliable Electrical Energy Solutions from China Suppliers and Factory Suppliers, Factory
China China Suppliers TY-SXS3 Three-Phase Electric Energy Metering Box (Transformer Type) from Reliable Factory Suppliers, Factory
Wholesale China Suppliers TY-DFW Wall-Mounted Cable Branch Box for Outdoor Use in Factories and Substations Suppliers, Factories
Wholesale China Suppliers Factory TY-SXS3 Three-Phase Electric Energy Metering Box (Transformer Type) for Reliable Energy Management Factories, Factory
Wholesale China Suppliers Factory TY-SXD1-FSH1 Waterproof Box for Reliable IP44 Protection Against Moisture and Dust Manufacturer, Factory
Wholesale Stainless steel single phase electric energy metering box Manufacturers, Factories

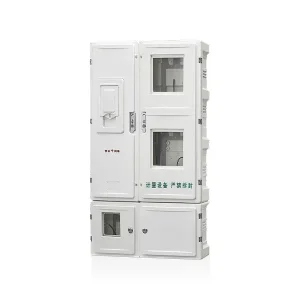

China Three-Phase Electric Energy Metering Box TY-SXS2 from China Suppliers and Factory for Efficient Power Management Manufacturers, Factory
