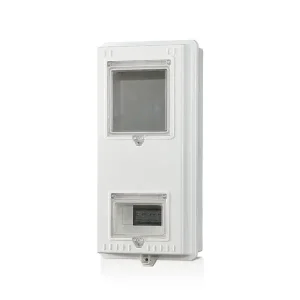

Wholesale SMC Fiberglass Foreign Trade Box - China Suppliers and Factory for Single-Phase and Three-Phase Applications Suppliers, Factory
View Specifications
Wholesale China SMC Fiberglass Photovoltaic Grid-connected Box - Reliable Suppliers and Factory for Solar Energy Solutions Factories, Factory
View Specifications
China TY-SXS1 A type box Manufacturers, Factories
View Specifications
China TY-SXS3-BXJ Low Voltage B-Type Box for Transformers - Reliable Power Management from China Suppliers and Factory Factories, Factory
View Specifications

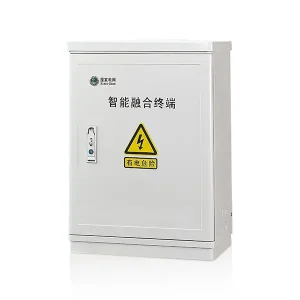

China TY-TTU Intelligent Fusion Terminal Box - Reliable Power Solutions from China Suppliers and Factory Manufacturers, Suppliers
View Specifications
Wholesale China Stainless Steel Three-Phase Electric Energy Metering Box & Transformer - Trusted Suppliers and Factory Solutions Manufacturers, Factories
View Specifications11kV Ring Main Unit (RMU) in Modern Industrial Grids
Analyzing the pivotal role of 11kV gas-insulated and solid-insulated RMUs in medium-voltage distribution systems worldwide.
In medium-voltage (MV) secondary distribution networks, the 11kV Ring Main Unit (RMU) represents the fundamental cornerstone for ensuring continuous electrical supply, transient fault isolation, and flexible load switching. Across rapidly urbanizing landscapes, dense industrial estates, and remote renewable energy hubs, standard radial feeds are no longer sufficient. Today's commercial infrastructure relies heavily on closed-loop or open-loop ring topologies where an RMU provides multi-circuit switching capability without disrupting downstream consumers during line repairs or feeder maintenance.
As industrial automation, mega-scale data centers, and e-mobility charging infrastructures accelerate, the power density of distribution substations has surged. Modern 11kV RMU switchboards engineered by leading Chinese manufacturing clusters integrate advanced vacuum interrupter technology, precision capacitive voltage indicators, motorized actuators, and microcomputer protection relays. This technological evolution allows municipal power utilities, turnkey EPC contractors, and distribution system operators (DSOs) to achieve unprecedented operational reliability while maintaining a compact physical footprint.
Industry Evolution: Eco-Gas, Solid Insulation & Smart Grid Integration
Examining key technological shifts transforming medium-voltage switchgear from passive isolation gear to intelligent grid nodes.
SF6-Free Eco-Friendly Insulation
Global environmental mandates, notably EU F-gas regulations and corporate Net-Zero commitments, are propelling the replacement of sulfur hexafluoride (SF6) with synthetic dry air, technical nitrogen, or fluoronitrile-based eco-gas mixtures with zero global warming potential (GWP).
Solid Insulation (SIS) Architecture
By encapsulating the vacuum interrupter, primary disconnect, and busbars in high-dielectric epoxy resin, Solid Insulated Ring Main Units eliminate gas-leak risks altogether, preventing internal phase-to-phase flashovers under high condensation and corrosive coastal air.
Edge-Computing RTU / DTU Integration
Modern Chinese 11kV RMU assemblies incorporate Distribution Terminal Units (DTU) and Feeder Terminal Units (FTU) supporting IEC 61850 and Modbus protocols. Self-healing microgrids rely on real-time fault detection, isolation, and service restoration (FDIR) within milliseconds.
| Evaluation Parameter | Gas-Insulated Switchgear (SF6 RMU) | Solid-Insulated Switchgear (SIS RMU) | Air-Insulated Switchgear (AIS RMU) |
|---|---|---|---|
| Dielectric Medium | Sulfur Hexafluoride Gas (0.04 - 0.05 MPa) | Hydrophobic Cycloaliphatic Epoxy (HCEP) | Atmospheric Air / Environmental Barriers |
| Footprint & Dimensions | Ultra-Compact (< 0.5 m² per functional unit) | Compact Modular (< 0.6 m² per functional unit) | Moderate to Large (Requires wide clearance) |
| Environmental Sensitivity | Hermetically sealed; unaffected by flood/dust | Immune to ambient humidity, salt spray & pests | Sensitive to ambient dust, condensation & pollution |
| Maintenance & Lifecycle | 30-Year Maintenance-Free sealed tank | Zero gas recycling overhead; 35+ years lifespan | Periodic mechanical cleaning and breaker overhaul |
Localized Application Scenarios & Environmental Adaptation
Customized mechanical, electrical, and thermal configurations tailored to localized climate zones and industrial constraints.
Coastal & Offshore Substation
Engineered with 3mm grade 304 or 316L stainless steel laser-welded hermetic tanks, achieving IP67 sealing to prevent salt aerosol penetration, sulfur corrosion, and galvanic degradation across maritime ports and offshore wind collection nodes.
High-Altitude & Extreme Cold
Equipped with specialized ceramic bushings, enhanced creepage distance insulators, and temperature-compensated SF6/N2 pressure gauges rated for flawless vacuum breaking performance down to -40°C in high-plateau mines and mountainous corridors.
Urban Underground & Compact Vaults
Features top or bottom cable access, front-facing operation mechanisms, mechanical interlocks, and internal arc classification (IAC AFLR 20kA 1s) to ensure absolute operator safety in tight basements, subway stations, and commercial skyscrapers.
Utility-Scale Solar & BESS Parks
Integrated with bidirectional metering current transformers (CTs) and harmonic-resistant vacuum circuit breakers configured to withstand high switching frequencies and direct coupling with medium-voltage step-up transformers in solar installations.
Turnkey Manufacturing Excellence for Global EPCs & Utilities
From custom schematic design to end-of-line high voltage impulse testing, how our Yueqing manufacturing base streamlines equipment procurement.
Engineering & Simulation
Custom 3D CAD modeling, electro-magnetic field simulation (FEA), thermal rise calculations, and dielectric clearance optimization customized to local utility specs.
Robotic Laser & Enclosure
Automated fiber laser cutting, CNC bending, and robotic seamless TIG welding of stainless steel gas tanks, ensuring annual helium leakage rates below 0.1%.
Component Integration
Installation of long-life vacuum interrupters, silver-plated copper busbars, magnetic latching mechanisms, microcomputer protection relays, and smart sensors.
Type & Routine Verification
Rigorous routine testing in compliance with IEC 62271-200 and IEC 62271-100: power-frequency withstand (42kV), lightning impulse (75kV/95kV), and partial discharge (<10pC).
Zhejiang Teyi Electric Co., Ltd. sits at the heart of Yueqing Economic Development Zone—universally recognized as China's premier electrical capital. This unique geographic cluster enables our engineers to leverage high-precision supply chains for every sub-tier component, from precision spring mechanisms to digital protection terminals. Whether an international project calls for standard 3-way or 4-way functional configurations (such as CCC, CCV, CCF, or extensible modular lineups), we deliver complete factory-tested systems that cut site commissioning timelines by over 40%.
Frequently Asked Questions on 11kV RMU Panels
Engineering and procurement clarifications addressed by our medium-voltage switchgear specialists.
What is the standard functional configuration of an 11kV RMU?
Common configurations include non-extensible and extensible modular units. Standard abbreviations denote the functional modules: "C" represents a load break switch (cable switch) module, "V" represents a vacuum circuit breaker module for transformer protection, and "F" represents a switch-fuse combination unit. A standard "CCV" unit includes two ring feeder switches and one transformer circuit breaker branch.
How does an RMU differ from standard primary MV switchgear?
While primary medium-voltage switchgear (such as air-insulated KYN28 panels) is designed for main substations with drawout circuit breakers and high short-circuit interrupting capacity (up to 40kA/50kA), an RMU is specifically designed for secondary distribution networks. RMUs prioritize compact footprint, hermetically sealed environments (IP67 tank), minimal maintenance, and lower installation costs.
What international standards govern your 11kV RMU production?
All our ring main unit switchboards, enclosures, and switching mechanisms are engineered, tested, and certified in strict accordance with IEC 62271-200 (AC metal-enclosed switchgear), IEC 62271-100 (High-voltage alternating current circuit-breakers), IEC 62271-102 (Alternating current disconnectors and earthing switches), and IEC 60529 for ingress protection ratings.
Can you provide custom telemetry and SCADA automation?
Yes. Our engineering division integrates factory-fitted motorized spring-charging mechanisms, 24V/48V/110V/220V DC trip coils, digital auxiliary contacts, and advanced Feeder Remote Terminal Units (FRTU/DTU). These units support standard DNP3.0, IEC 60870-5-104, and Modbus TCP/IP protocols for seamless integration with utility SCADA control centers.
